Pto Shaft Replacement Of Weasler 6 Series - China

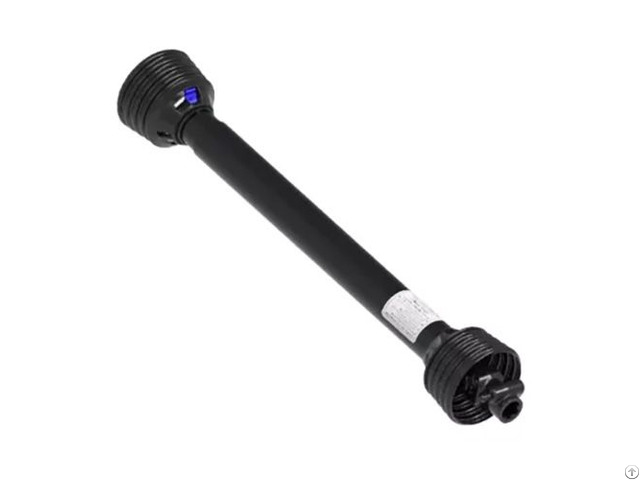

PTO Shaft Replacement Of Weasler 6 Series Ever-power's High-Performance PTO drive shaft is one of the best drive shaft option in the lawn, agriculture and industry.

Ever-power PTO drive shaft comprises a total unit that includes the tractor all the way to the implement.

They are made for long-term heavy-duty usage and can meet the demands of large contractors and farms.

Every the power PTO drive shaft is able to replace the Weasler brand 6 Series.

Advantages Of Ever-power PTO shaft

Adjustability of design (cutting in length) ability.

It is interchangeable with many models from competitors.

Spline and square shafts are both available.

The simple locking mechanism permits quick and simple assembly or disassembly by using simple tools, such as coins, keys or screwdrivers.

The extended lubrication electronic kit helps reduce downtime through intervals between lubrication of 50 and 250

Three lip seals with high temperatures will better hold grease.

Customer-specific engineering and sales support.

Design features

It is easy to lock the protection system: offer all-encompassing coverage at the highest angle 360 degrees of friction welding of the protective cover, black ultraviolet, and ozone resistance.

the cold-weather impact rating is -35 degrees Celsius which is more than the safety standards of all relevant standards as well as the disassembly the installation is quick and easy.

-Yoke: interchangeable with other Ever-power yokes as well as conventional yokes sold that are available, with cast iron collars that have holes to stop debris from getting inside.

Bearing kit and crossover High power and torque capacities, as well as longer life span.

It is made from high-quality steel that increases the strength.

The kit is able to be upgraded or swapped using the digital kit.

The same design of components is used in Ever-power's home and metric lines.

6 Series PTO Shaft Parts

16Hp@540rpm

30Hp@1000rpm Part Number Cup

Diameter Length

(B) Snap

Ring Series

1-1475 0.9687 1.453 Inside L6

6 Series Square Or Rectangular Parts

Bar Yoke # Solid Shaft OD Spec Square Sleeve Tube Yoke

Shield Shield Bearing Length Shield Bearing ID

69-0648 56-1600 48 1.83

69-0648 56-0600 48 1.50

900-2548 920-0260/ *0415169 48 1.375

6-Series Splined Parts

Bar Yoke # Splined Shaft OD Spec Splined Sleeve Tube Yoke

302-0600 404-1615 1.00-15 1.00-15 510-0615 703-0600

301-0600 404-1615 1.00-15 1.00-15 510-0600 702-0600

6 Series Quick Connect Yokes

Part Number Diameter No of Splines

101-0610

0.981 10

105-0615 1.00" 15

100-0621 1.375 21

100-0606 1.375 6

Six Series Clamp Yokes

Part Number Diameter Number of Splines Bore c-e Length Clamp Type Notes

Six series Clamp Yokes with Spline Clamp Yokes

06091-1461 .

875 20 1.4 2.53 double bolt Splined

807-0615 1.00 15 1.2" 2.5" Splined

6 / 0600 Round Clamp Yokes

807-0614 0.875 .

187 round

06091-2664 0.875 0.188 round

807-0616 1.00 0.250 round

6 Series Straight Bores

Six Series Round Bore

Part Number Bore Key (c-e) Length Bore Length

806-0610 0.625 .

187 806-0612 0.750 0.187 / 0.250 806-0613 0.812 0.187 / 0.250 806-0614 0.875 0.187 / 0.250 800-0615 0.9375 0.250 2.5 806-0616 1.00 0.187 / 0.250 2.5 1.125

806-0618 1.125 0.250 / 0.312 806-0619 1.187 0.250 / 0.312 806-0620 1.250 0.250 / 0.312 2.5 Six Series Splined Bores

Part Number Diameter Splines

06011-1000 0.875 20

06011-3255 0.875 13

06011-3258 0.875 20

801-0618 1.125 6

801-0606 1.375 6

301-0600 Splined 1.00
