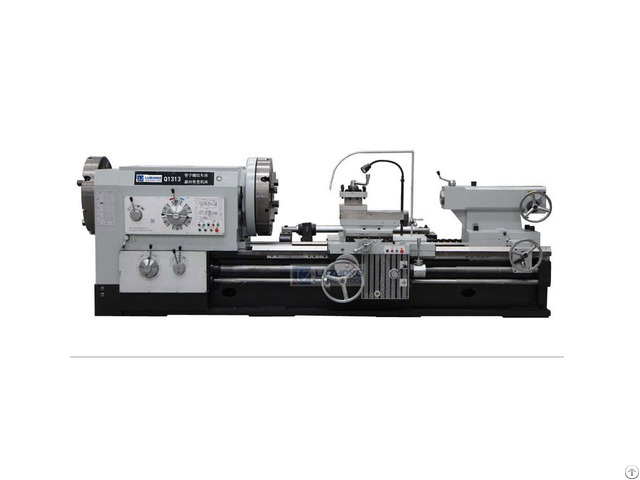

Q1313 Pipe Threading Lathe Machine - China

Lathe Machine

The Pipe Threading Lathe Machine main performance characteristics：

Big spindle bore and double chuck allows clamp and process big diameter pipes;Integral machine bed adopts high strength iron to relize high rigidity and precision;Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;Equiped with taper guide bar device this enables the machine to process taper threads.

More information you can views here Application:

Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting, coal and minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Standard accessories:

Tool post, Tailstock, Chuck, taper guide bar, Lighting lamp, Coolant pump, Rear support bracket, Pad iron etc.

Optional accessories:

Digital readout, Chuck, Faceplate, Chasing dial, Center rest, Signal light, Protective cover(lead-screw, chuck, tool post), and Grinding attachment etc.

Product main technical parameters:

Specifications UNIT Q1313

Capacity Swing over bed mm 630/800 Swing over cross slide mm 340/540 Distance between centers mm 1500/3000 Pipe threading range mm Ø30-126 Width of bed way mm 550 Max.

load capacity T 3

Spindle Spindle bore mm Ø130 Spindle speed steps - FWD.

18/REV.

9 Spindle speed range rpm 12-642/19-800 Chuck size mm 400 Chuck type - 3-jaw manual

Turret Turret type - Manual 4 position Tool shank size mm 32x32 Turret travel mm 200

Carriage X axis feed grade/range mm/r 22/0.02-0.45 Z axis feed grade/range mm/r 26/0.07-1.33 X axis rapid traverse speed mm/min 2300 Z axis rapid traverse speed mm/min 4000 X axis travel mm 320 Z axis travel mm 1310/2810

Tailstock Tailstock quill diameter mm 100 Tailstock quill taper - MT#5 Tailstock quill travel mm 250

Motors Main spindle motor kW 7.5 Rapid traverse motor kW 0.3 Coolant pump motor kW 0.125

Thread Metric thread grade/range mm 52/1-24 Inch thread grade/range T.P.I.

40/2-28

Dimensions Width x Height mm 1360X1480 Length mm 3657/5157

Weight N.W./G.W. T 3.8/4.6
