Reinforcing Steel Bar Cage Welding Machine Fh 1500 - China

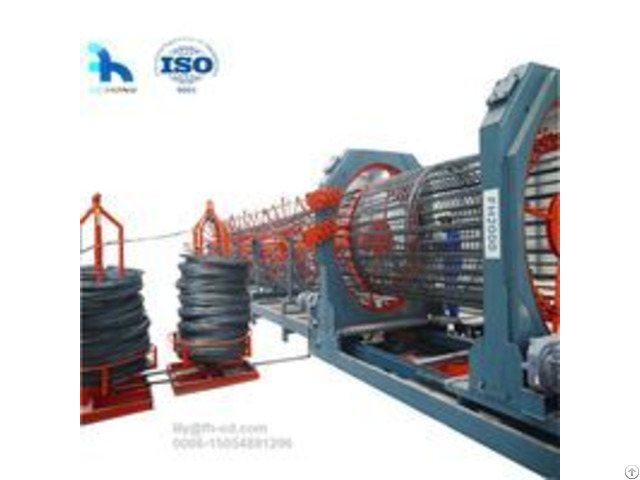

Item name: Reinforcing Steel Bar Cage Welding Machine FH-1500

Shandong feihong rebar cage making machine mainly for making and welding the rebar cages to reinforcing the concrete pile on the construction site.

Machine can working not only with the single longitudinal bars and spirals, but also it can well working with the double type.

Main features of the Reinforcing Steel Bar Cage Welding Machine FH-1500 1 - Import ABB converter, Panasonic PLC and Touchable Screen to ensure the stable operation of the equipment.

2 - Cage diameter control precision, the longitudinal bar spacing error is small, and it can be controlled within 1cm; one meter Spiral wire spacing error can be controlled within 5mm.

3 - It can produce double longitudinal bar with double spiral wires high quality cage.

4 - The weight of the equipment is heavier 10% than other factories in the same industry.

5 - The load capacity of equipment is large, and it can produce 5-6 tons in one rebar cage.

6 - Power source: the three main geared motors adopt the domestic top brands, large torque and low failure rate.

7 - The hydraulic support adopts a Cylinder diameter of 100mm, but other suppliers’ are generally 80mm in the industry; the support ability of our equipment is over 20% in the same industry.

Technical Parameters of the Reinforcing Steel Bar Cage Welding Machine FH-1500 Item No FH1500 (Pile diameter 1.5M) FH2000 (Pile diameter 2M) FH2200 (Pile diameter 2.2M) FH2500 (Pile diameter 2.5M) Cage pile diameter 600 ~ 1500mm 800 ~2000mm 800 ~2200mm 1000 ~2500mm Customized cage length 12/18/22/27m 12/18/22/27m 12/18/22/27m 12/18/22/27m Spiral wire diameter 5.0 ~ 16.0mm 5.0 ~ 16.0mm 5.0 ~ 16.0mm 5.0 ~ 16.0mm The main reinforcement diameter(mm) 12.0 ~ 40.0mm 12.0 ~ 40.0mm 12.0 ~ 40.0mm 12.0 ~ 40.0mm Spiral pitch 50 ~ 500mm 50 ~ 500mm 50 ~ 500mm 50 ~ 500mm Hydraulic system pressure 10Mpa 10Mpa 10Mpa 10Mpa Maximum installed Power supply 13Kw 380V/50Hz/3Phase 23Kw 380V/50Hz/3Phase 23Kw 380V/50Hz/3Phase 31KW 380V/50Hz/3Phase Working temperature -20°~ 50℃ -20°~ 50℃ -20°~ 50℃ -20°~ 50℃ Overall dimension 28m(L) × 5m(W) ×2m(H) 28m(L) × 6m(W) ×2.5m(H) 28m(L) × 6m(W) ×2.5m(H) 28m(L) × 7m(W) ×3m(H) Welding method Welding method CO2 arc welding CO2 arc welding CO2 arc welding Welding materials Welding wire, welding rod Welding wire, welding rod Welding wire, welding rod Welding wire, welding rod
