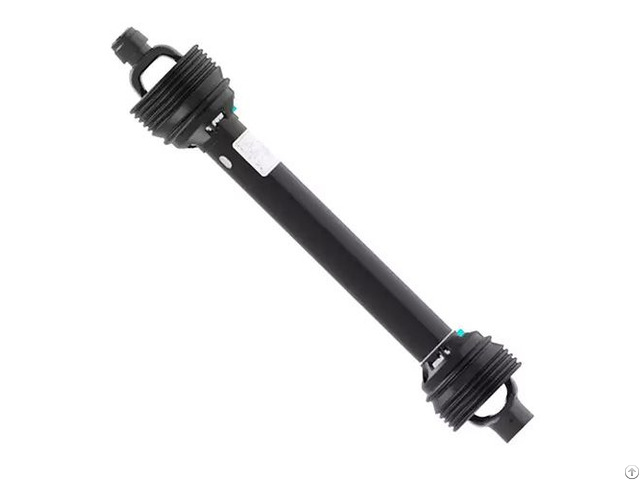

Replacement Of Weasler 55 Series Pto Shaft - China

PTO Shaft Replacing for Weasler 55 Series Replacement for Weasler 55 Series PTO Shaft

1/8''-6 7

Requires Cross Kit.

Implementation Yoke is required.

The engine produces 106 horsepower at 540 RPM.

48' Compressed Length (Dim.

A)

55 Series Replacement PTO Shaft Weasler specifications:

Spec.

Imperial Metric

Bore 1 Minus End Yoke

Bore 2 Minus End Yoke

Compressed (Closed) Length 37.38 inches 949 millimeters

Compressed Overall Length 48.00 inches 1219 mm

Connection 1 YOKE Arms

Connection 2 ARMS WITH YOKE

Extended Length 61.13 inches 1553 mm

Extended Overall Length 72.00 inches 1829 mm

HP@1000RPM 164 HP 122 Kilowatts

HP@540RPM HP 106 79 Kilowatts

Length 48.00 inches 1219 mm

Outside Diameter 7.28 inches 185 millimeters

Shipping Dimensions 37.38" L 37.38" L 7.28" H 7.28" W x 7.28" W 95cm L x 18cm H 18cm W

Shipping Volume 1981.08 in3 32464 cm3

Shipping Weight 41.90 pounds 19 kilograms

Weight 41.90 pounds 19 kilograms

Replacing of 55 Series Weasler PTO Shaft Parts:

Tractor Yoke The Cross & Bearing Kit Shaft Shaft Weld Yoke

Slip Sleeve Tube Tube The Weld Yoke implement Yoke

Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing

What is PTO shaft?

PTO shaft PTO shaft plays an essential function as it transmits power between the tractor and the implement attached.

The components of the PTO shaft comprise of the inner and outer PTO yokes as well as universal joints, safety chains, and guards.

There are many different kinds of PTO shafts that you can choose from and it is crucial to select the best one for your particular equipment and use.
