Sa Recirculating Water Cooled Chiller Cw 6000 With0 5 Stability - China

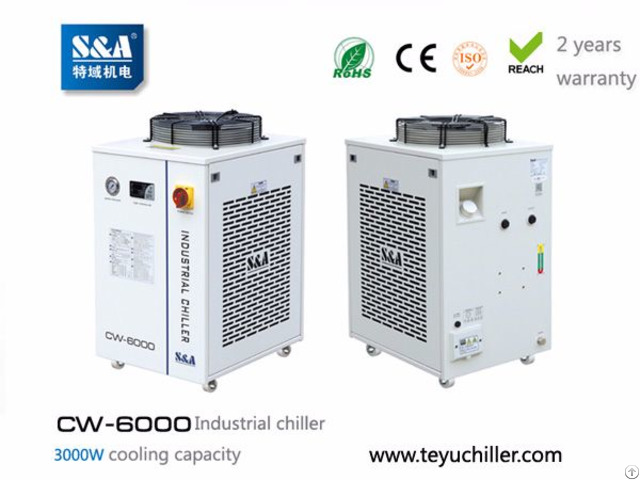

Water cooled chiller CW-6000 is designed, developed and produced by Guangzhou Teyu Electromechanical Co., Ltd(also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16 year experience.

The production plant of S&A covers an area of 18, 000 square meters, enabling the annual production capacity of 60, 000 units of water chillers.

With cooling capacity up to 3000W and ±0.5℃ stability, S&A water chiller CW-6000 can cool the equipment very efficiently and effectively.

With the water tank capacity of 15L, S&A recirculating water chiller CW-6000 is widely applied in cooling high-power laser or high-power spindles.

S&A water chiller CW-6000 has good compatibility with powers of different countries due to its multiple power specifications.

It uses T-506 as digital temperature controller which has various setting and display functions.

It has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users.

Under intelligent control mode, the water temperature of CW-6000 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.

S&A water cooled chiller CW-6000 has multiple alarm functions which can provide great protection to the equipment, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

S&A chillers have passed ISO, CE, RoHS and REACH approvals and the warranty is 2 years.

Water chiller parameter: Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity: 15L

Max.

lift: 10M/25M/28~53M; Max.

flow: 13L/min- 70L/min

N.

W: 60Kgs; G.

W: 70Kgs;

Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H) About S&A Brand

S&A(TEYU) was founded in 2002 - After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:

1 - With 11 patent certificates, CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:

1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Annual output 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.
