Sa Water Cooling Unit Cw 5200 With Ce Rohs And Reach Approval - China

Refrigeration water chiller CW-5200 is designed, developed and produced by Guangzhou Teyu Electromechanical Co., Ltd(also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16 year experience.

The production plant of S&A covers an area of 18, 000 square meters, enabling the annual production capacity of 60, 000 units of water chillers.

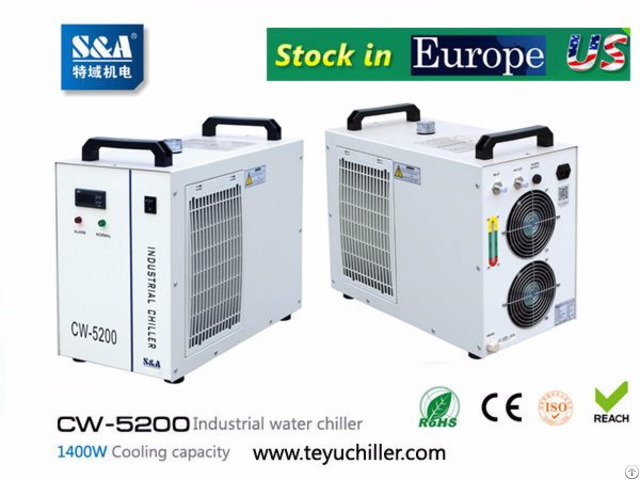

S&A industrial water cooled chiller CW-5200 is refrigeration type water chiller which can provide effective cooling for the equipment which needs to be cooled.

S&A water chiller CW-5200 is characterized by the cooling capacity of 1400W and the precise temperature control of±0.3℃ and passes rigid factory test with CE, RoHS and REACH approval.

S&A laser water chiller CW-5200 uses environmental refrigerant R-410a as refrigerant, greatly protecting the environment.

The black handles of water chiller CW-5200 can help users lift the chiller very easily due to its compact design.

It has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users.

Under intelligent control mode, the water temperature of CW-5200 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.

S&A water chiller CW-5200 has multiple alarm functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

S&A chillers have passed ISO, CE, RoHS and REACH approvals and the warranty is 2 years.

chiller CW-5200 specfications: Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity: 6L

Max.

lift: 10M-25M; Max.

flow: 10L/min- 16L/min

N.

W: 26Kgs; G.

W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand

S&A(TEYU) was founded in 2002 - After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:

1 - With 11 patent certificates, CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:

1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Annual output 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.

CONTACT S&A

SKYPE: teyuchiller ; TEL: +86-20-89301885; FAX: +86-20-84309967

Company Contact:

• Posted By: GUANGZHOU TEYU ELECTROMECHANICAL CO., LTD

• Phone: 86-20-89301885

• Address: No.50, Zhongchuang Road, Zhongcun town, Panyu District, Guangzhou, China, Guangzhou , Guangzhou , China

• Email:

• Website: https://www.teyuchiller.com

• Business Description: Founded in 2002, Guangzhou Teyu Electromechanical Co., Ltd. has established two chiller brands: TEYU and S&A.

  With 21 years of industrial chiller manufacturing experience, our company is recognized as a cooling technology pioneer and reliable partner in the laser industry.

  TEYU S&A Chiller delivers what it promises - providing high performance, highly reliable and energy efficient industrial water chillers with superior quality.

  Our recirculating water chillers are ideal for a wide variety of industrial applications.

  And for laser application in particular, we develop a complete line of laser water chillers, ranging from stand-alone units to rack mount units, from low power to high power series, from ±1℃ to ±0.1℃ stability technique applied.

  We have been helping customers in more than 100 countries to solve overheating problems in their machines with our constant commitment to stable product quality, continuous innovation and understanding of customer needs.

  Operating with the latest technology and advanced production lines in 25,000㎡ ISO-qualified production facilities with 400 employees, our production capacity now reaches 120,000+ units per year.

  All TEYU S&A industrial water chiller systems are REACH, RoHS and CE certified.
