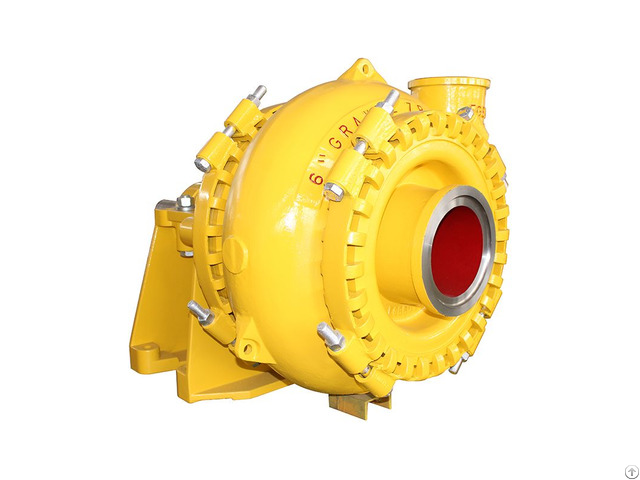

Sand Gravel Pump

Product Description

TNG Series Introduction:

TNG series is single casing horizontal slurry pump and also named as gravel pump, sand pump and

dredging pump, which is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution.

Capable of handling large particles at consistently high efficiency results in low cost of ownership.

The large volume internal profile of the casing reduces associated velocities further increasing component life.

Application:

Gravel sand pumps are widely used in dredging, mining, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material.

etc.

various industrial sites.

For different duties, pump may be named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump, Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump

Features:

1 - Single casing, cantilevered, horizontal pump

2 - Wide passage, good performance of NPSH, anti-wearing and anti-corrosion, and high 3 - efficiency, Specification:

D: 100-400mm

Q: 36-5040m3/h

H: 5-80m

Technical Parameters

CG(H) Series Gravel Pump Performance Chart Pump

Model Allowable

Max.

Power Clear Water Performance Capacity Q Head

H(m) Speed

n(r/min) Max.

Eff.

η% NPSH

(m) Impeller

Dia.

m3/h l/s 65TNG 60 36-250 10-70 5-52 600-1400 58 2.5-3.5 378 80TNG 120 126-576 35-160 6-45 800-1400 60 3-4.5 378 100TNG 560 216-936 60-260 8-52 500-1000 65 3-7.5 533 100TNG 560 180-1440 50-400 24-80 500-950 72 2.5-5 711 150TNG 600 360-1440 100-400 10-60 400-850 65 1.5-4.5 667 150TNG 600 288-2808 80-780 16-80 350-700 73 2-10 950 200TNG 600 576-3024 160-840 8-70 300-700 68 2-8 864 250TNG 600 720-3600 200-1000 18-44 300-500 70 3-9 1016 300TNG 1200 324-3600 90-1000 26-70 300-500 72 3-6 1270 300TNG 1200 720-4320 200-1200 12-48 250-500 72 3-6 1067
