Stamping Manipulator 2d - China

Description:

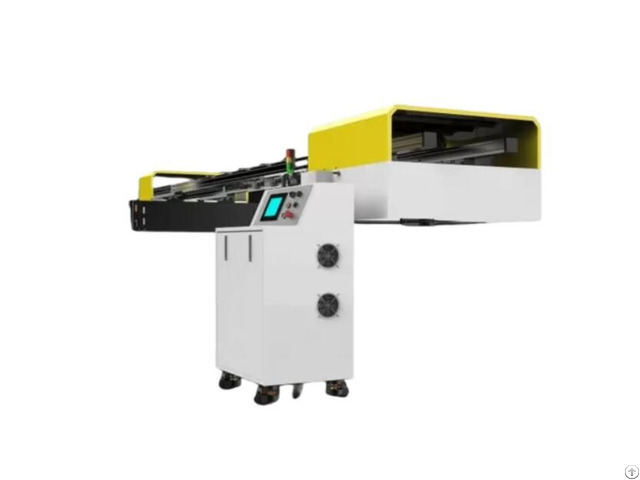

The 2D Stamping Manipulator, available in various models such as QF-D200, QF-D300, QF-D450, QF-D600, and QF-D900, is a versatile and precision-engineered tool designed for efficient and accurate handling of stamped components in manufacturing processes.

This manipulator is equipped with advanced features to ensure seamless operation and optimal performance.

Specifications:

1) Transfer Accuracy: ±0.2mm

2) Movement Stroke (X axis): 200mm (QF-D200), 300mm (QF-D300), 450mm (QF-D450), 600mm (QF-D600), 900mm (QF-D900)

3) Movement Stroke (Y axis): 0~150mm

4) Lifting Stroke (Z axis):

30-100mm (for QF-D200, QF-D450, QF-D600, QF-D900)

30-60mm (for QF-D300)

5) Reclaiming Method: Vacuum Suction Cup/Electric Suction Cup/Gripper

6) Applicable Driver: Mitsubishi Servo Driver

Single Machine Multi-Engineering Manipulator Key Features:

1 - Precision Transfer: Achieves a high transfer accuracy of ±0.2mm, ensuring precise placement of stamped components during the manufacturing process.

2 - Adjustable Movement Stroke: Offers a range of movement strokes (X axis) from 200mm to 900mm, catering to different production requirements and component sizes.

3 - Versatile Reclaiming Method: Supports multiple reclaiming methods including vacuum suction cup, electric suction cup, and gripper, providing flexibility to handle various types of stamped components.

4 - Advanced Control System: Utilizes Mitsubishi Servo Driver for reliable and efficient control of the manipulator, ensuring smooth and accurate operation.

5 - Adjustable Lifting Stroke: Provides adjustable lifting stroke (Z axis) options, allowing for precise positioning and handling of components at different heights.

6 - Robust Construction: Built with durable materials and precision engineering, ensuring long-term reliability and minimal maintenance requirements.

7 - User-Friendly Design: Designed with ease of use in mind, featuring intuitive controls and ergonomic design elements for operator convenience and efficiency.

Applications:

A.

Automotive manufacturing

B.

Electronics assembly

C.

Appliance production

D.

Aerospace industry

E.

General manufacturing processes requiring precise handling of stamped components.
