Switch Probe Pogo Pin Swp164 For Electronic Test - Hong Kong

Switch Probe Pogo Pin SWP164 for Electronic Test Switch probes are a kind of functional probes.

They are used to determine the correct location of a terminal in a connector.

They can also be used to determine the presence of nonconductive components, etc.

Their application field is mainly as below

Wire harness connector

PCB component detection

Door open-close switch

Fixture component detection

Automation process sensing

Position and retention force Below switch probe we will introduce is SWP164 - Its diameter is 1.64 mm and total length is 44.65 mm.

As usual, switch probes do not entail very high currents, and this model SWP260 can work with the current up to 3 A.

The typical maximum contact resistance of this model SWP164 is 160 mΩ.

The materials used for the construction of switch probes are different for each component:

The barrel is made of brass.

Subsequently gold plated during the galvanic plating phase.

The spring is made of gold plated music wire.

The plunger is made of BeCu, then gold and nickel plated.

The insulating sleeve is made of POM For details of SWP164 switch probe, please check below parameters.

Technical Specifications

Recommended Current Rating: 3 Amps, continuous

Contact Resistance: 160 milliohms, maximum

Full Stroke: 5 mm

Rated Stroke: 3.3 mm

Spring Force: 130 gf (4.5 oz)

Normal Condition: Disconnecting between Plunger 1 and Plunger 2

Press down 1 mm: Continuity between Plunger 1 and Plunger 2 Materials

Contact Barrel: Brass, Au on Ni Plated

Spring: SWP, Au on Ni Plated

Plunger 1: BeCu, Au on Ni Plated

Plunger 2: BeCu, Au on Ni Plated

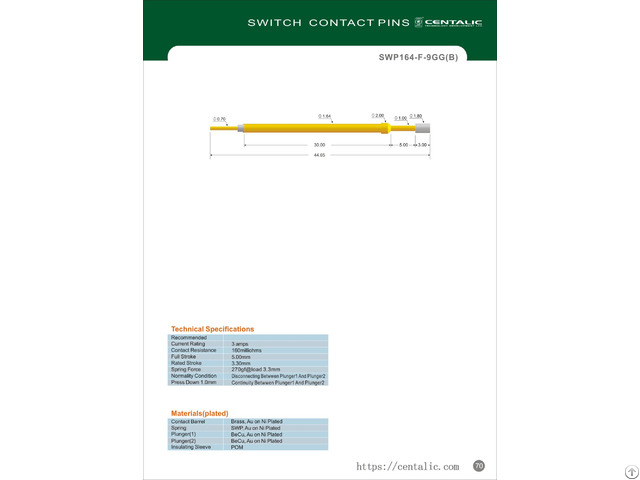

Insulating Sleeve: POM For more information, please check below catalog.

Advantages of this switch probe

Reliable performance

Low cost of test

Best yield Our company are also able to change the head shape, total length and diameter, etc., of our switch probes to facilitate their use in different applications.

The pitch of installation of switch probes depends on your specific needs.
