Test Probe Pogo Pin Swp300 Acting Like A Switch - Hong Kong

Test Probe Pogo Pin SWP300 Acting Like a Switch Switch probes are a kind of functional probes.

They are used to determine the correct location of a terminal in a connector.

They can also be used to determine the presence of nonconductive components, etc.

Their application field is mainly as below

Wire harness connector

PCB component detection

Door open-close switch

Fixture component detection

Automation process sensing

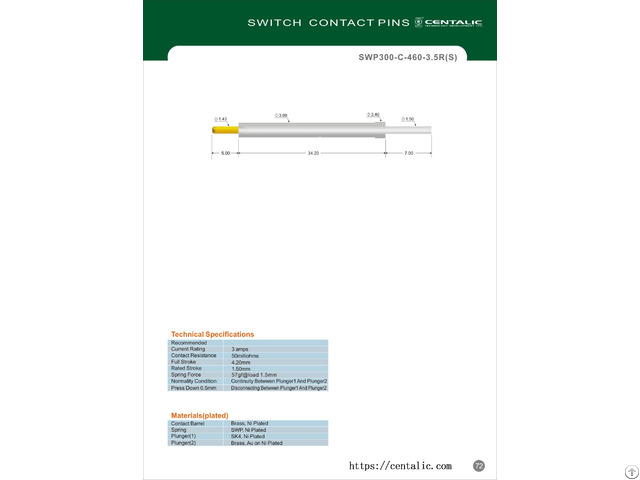

Position and retention force Below switch probe we will introduce is SWP300-C-460-3.5R(S).

The diameter is 3 mm and total length is 46.2 mm.

As usual, switch probes do not entail very high currents, and this SWP300 test probe pin can work with the current up to 3 A.

The typical maximal contact resistance of this test probe is 50 mΩ.

The materials used for the construction of switch probes are different for each component:

The barrel is made from brass.

Subsequently nickel plated during the galvanic plating phase.

The spring is made of music wire plated with nickel.

One plunger is made of SK4 plated with nickel.

Another plunger is made of brass plated with gold and nickel.

For details of SWP300 switch probes please check below parameters.

Technical Specifications

Recommended Current Rating: 3 Amps, continuous

Contact Resistance: 50 milliohms, maximum

Full Stroke: 4.2 mm

Rated Stroke: 1.5 mm

Spring Force: 57 gf at load 1.5 mm

Normal Condition: Continuity between Plunger 1 and Plunger 2

Press down 0.5 mm: Disconnecting between Plunger 1 and Plunger 2 Materials

Contact Barrel: Brass, Nickel Plated

Spring: SWP, Nickel Plated

Plunger 1: SK4, Ni Plated

Plunger 2: Brass, Au on Ni Plated Advantages of this switch probe

Reliable performance

Low cost of test

Best yield Our company are also able to change the head shape, total length and diameter, etc., of our switch probes to facilitate their use in different applications.

The pitch of installation of switch probes depends on your specific needs.
