Top Guide Single Seat Control Valve KTSP

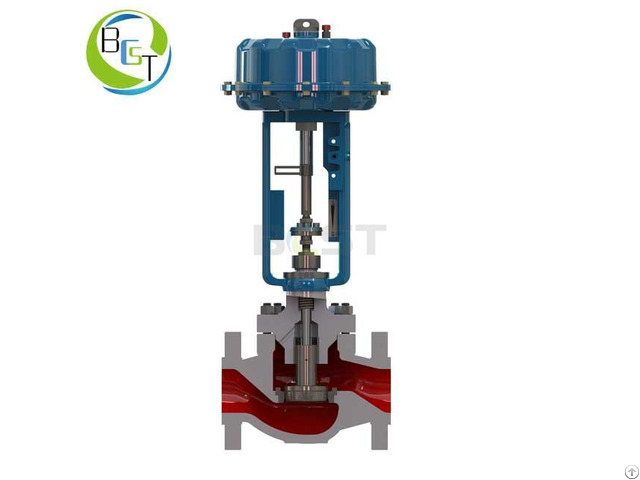

KTSP Top Guide Single Seat Control Valve is a kind of control vlave with top guide structure, guide area big, high anti seismic, S flow channel, small pressure loss, big flow rate, wide adjustment range.

The control valve is equipped with ZM type multi spring pneumatic diaphragm actuator, which has simple and solid structure, large output force and long service life.

Size : DN 15 to Dn250

Pressure rating : ANSI 150 to 600

BCST Single Seat Control Valve Technical Parameter

Model Type Pressure rating Temperature °C

KTSP Normal Temperature ANSI150, 300, 600 -17 to 230

KTSP Extended I type ANSI150, 300, 600 230 to 566

KTSP Extended I type ANSI150, 300, 600 -45 to -17

KTSP Extended II type ANSI150, 300, 600 -100 to -45

KTSP Extended III type ANSI150, 300, 600 -196 to -100

Model Selection

K serial Linear Control Valve

1 - Valve type

KTS

KBC

KAS

KAC

KXL

KCM

seat regulating valve Balanced sleeve regulating valve Angle type single seat regulating valve Angle balanced sleeve regulating valve Pressure pilot sleeve valve Three way combined valve

KCT

KUD

KLD

ZZY

ZZYP-16Ⅱ

ZZCP/ZZVP

Three way diverting valve

Upward discharge valve Downward discharge valve

Self operated pressure valve



Command operated self operated valve Self standing differential / micro pressure valve
