Tqn Light Duty Slurry Pumps - China

TQN Light Duty Slurry Pumps

Slurry Pump

Light Duty Slurry Pumps, power plant slurry pump, Ceramics Slurry pump Overview

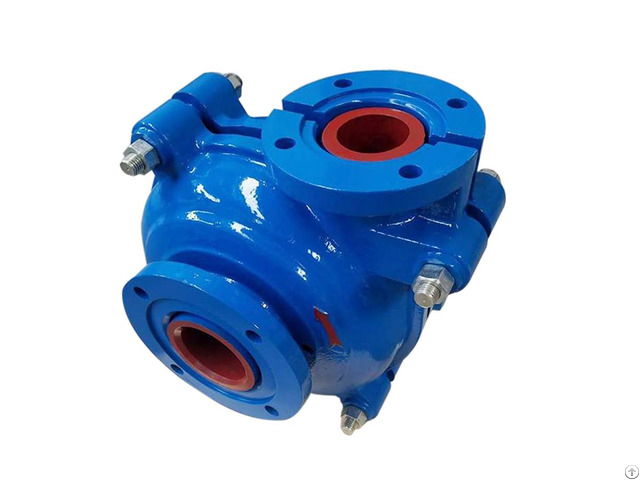

TQN/TQNF series pumps are horizontal cantilever centrifugal pump.

The material of TQN flow parts are metal and material of TQNF flow parts are Rubber liner.

Application

TQN/TQNF series Centrifugal Horizontal Light Duty Slurry Pumps compared with the Heavy Duty Slurry Pump, has faster speed, lighter weight and less volume.

Generally the weight concentration of liquid not more than 30%.

The pumps can be used in many applications, such as Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling.

It is widdly used in mining, power plant and chemical factory.

Material:

Parts Material Specification

VoluteLiner, Impeller, Throatbush, FPL insert Hard Metal A05: 23~30% A07: 14~18% A12: 30% A49: 27~29% A33: 33~37%Chrome White Iron Expeller&Expeller Ring Metal A05 23~30% High Chrome Iron G01: Grey Iron

Stuffing Box Metal A05 23~30% High Chrome Iron G01: Grey Iron

Frame Plate, Cover Plate, Base, Bearing housing Metal G01 Grey Iron D21 Ductile Iron

Silicon nitride ceramics

Shaft Carbon Steel Type 1045(ASTM)

Shaft Sleeve, Lantern, Rings, Restrictor, NeckRing, Gland Bolts Stainless Steel 3Cr13, 304SS, 316SS
