Various Models Of Drive Shafts For Every Application - China

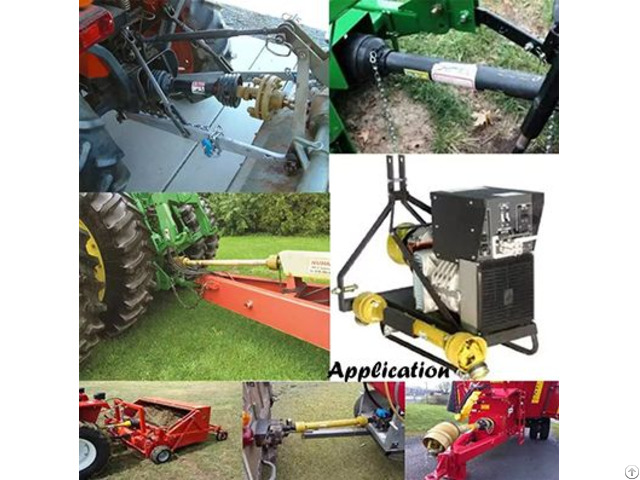

CE Certification for Agricultural Large Angle Tractor Supply 6 Spline PTO Drive Shaft 540mm used for Bush Hog With Yoke Adapter Parts PTO drive shaft The brand-new replacement PTO shafts suitable for Finish Mowers, Tillers, Spreaders, Hay Tedders and many other applications.

PTO is one of the series 4, and is designed for 40HP, it comes with 1 3/8" 6-spline push pins at both ends to facilitate installation.

With safety shield included.

the PTO has a length of 43" from the end to the end and has an extended length of 58" maximum length extended.

These PTO shafts work with these Finish Mowers:

Bush Hog ATH 600, ATH 730, ATH 800, FTH 600, FTH 480 FTH 720 MTH 600, MTH 720 Series Mowers

Landpride: FDR1548, FDR1572, FDR1648 the FDR1660, FDR1672, and FDR2548, FDR2560and AT2660, FDR2572; Series Mowers;

Kubota: B342A, BL348A Caroni TC480, TC590, TC710 T910 with Spline Input Shaft;

Many models that have input shafts that splined, earlier models had models with a smooth input shafts; 1 - PTO Drive Shafts PTO SHAFT With QUICK release yoke and over-running CLUTCH(RA) You can choose the length

Chinabase is a leading manufacturer of PTO SHAFTS to agricultural tractors and farm equipment from China.

We supply more than eight dimensions of PTO shafts.

We also offer a complete assortment of safety equipment to protect agricultural equipment.

Our products are distributed in America, Europe and all around the world.

We offer top quality goods at the most affordable cost.

Here are some tips on how to purchase your shafts for PTO:

2 - Overall length closed (or crossing to cross) of the PTO shaft.

3 - Pipes or Tubes

We've received Triangular profile tube as well as Lemon profile tube in every series we have.

There are also stars tube, splined and other tubes with profiles, however only for specific size.

4 - End the yokes

We have 13 varieties of splined-yokes, and 8 varieties of plain bore Yokes.

I'll suggest the standard kind for reference.

It is also possible to email drawings or photos to us in case you are unable to find the item you are looking for on our catalogue.

5 - Safety devices, clutches or other safety equipment

I'll provide the information of the safety devices to provide information.

We already have Free Wheel (RA) and a Ratchet limiter of torque (SA), limiter(SA), The torque of the shear bolt is limiter(SB) Three types of friction torque limiters (FF, FFS, FCS) along with Overrunning couplers(adapters) (FAS).

6 - If you have any additional specific requirements regarding the use of plastic guards, connecting methods or color of the paint packaging and so on.

If you have any other special requirements, be sure to let me know.

PTO SHFT INSTALLATION DIRECTION

Assembly installation

1 plastic pipe that is press-fitted and cap made of plastic, 2 Fill the groove of the horn by applying oil

3 - The nylon bearing should slide into the groove.

Align the nylon bearing with the plastic cover

Disassembly

1 - Remove the bearing clamp made of nylon (three places) using a screwdriver and then remove the steel pipe from the plastic cover for protection.

2 - The nylon bearing must be removed from the groove on the yokes.

3 - Repetition the above steps for the second side.

SLOWING THE PTO DRIVESHAFT 1 - Eliminate your safety cover.

2 - Reduce the length of the outer and inner tubes to the desired length.

The inner and the outer tubes must be cut by identical lengths at a at a time.

3 - The edge of drives using an instrument and then remove all files from the tubes.

4 - Cut the inner and outer plastic pipes in accordance with the length required and the inner and outer pipes should be

The length of the shortened limbs was also reduced at a time.

5 - Lubricate the internal drive tubes and then reassemble them using the protection shield.

Examine the lengths of the minimum and maximum of the driveshaft mounted within the equipment.

In good working order the drive tubes must extend by 2/3 while the tube made of plastic must never be separated.

Company Contact:

• Posted By: HangZhou Ever-Power Transmission Co., Ltd.

• Phone: +8613083988828

• Address: Shenhua Road, Hangzhou, China. P.C. 310030, Hangzhou , Zhejiang , China

• Email:

• Website: https://hzpt.com/agricultural-pto-shaft/

• Business Description: Hangzhou Ever-power Transmission Co., Ltd. Is a specialist in making all kinds of mechanical transmission and hydraulic transmission like:

  Parallel shaft helical gear reducers, planetary gearboxes, worm reducers, in-line helical gear speed agricultural reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars, low backlash worm reducers and so on.

  We can produce customized variators, geared motors, electric motors and other hydraulic products according to customers drawings.

  We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service.
