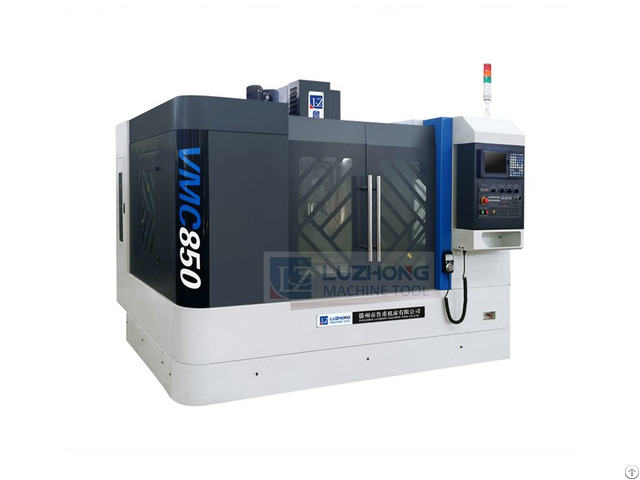

Vmc850 Cnc Vertical Machining Center - China
price: contact company for price
CNC Machining Center Manufacturer China: Tengzhou Luzhong Machine Tool Co., Ltd
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
More information you can views here Application:
This VMC is suitable for mechanical processing and mold making .
And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling, drilling, tapping, boring, etc.
Product main technical parameters:
specifications unit VMC850
Table size mm 1000x500
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Distance between spindle
center and column surface mm 571
Distance between spindle nose
and table surface mm 150-650
T slot 3-18*90
Spindle taper mm BT40
Max.
spindle speed r/min 8000(10000 optional)
Main motor power kw 7.5
X/Y/Z axis servo motor torque N.
M 15/15/18
X/Y/Z motor connection direct
X/Y/Z guide rail form 3 axis linear guide rail
Max.
table load kg 500
Automatic tools changer 16 Armless type(optional: 24 arm type)
Max.
tool weight kg 8
Company Contact:
- Posted By: Tengzhou Luzhong Machine Tool Co., Ltd
- Phone: 0632-5083086
- Address: Luban Avenue ,Tengzhou City ,Zaozhuang City ,Shandong Province ,China, Zaozhuang , Shandong , China
- Email:
- Website: https://www.lzcncmachine.com
Published date: June 27, 2019
- Business Description: Founded in 1992 ,We ,Tengzhou Luzhong Machine Tool Co., Ltd. , is a large enterprises with glorious chievement and long history ,covers an area of 100 thousand square meters, the construction covers area of 25 thousand square meters.
We have been providing all kind of cnc milling machine ,vertical machining center ,lathe machines ,drilling machines and others cnc mechanical equipment, products,to all sectors of the national economy for more than 20 years .
And our machines are very popular overseas ,and they are exported to more than 50 countries and zones ,and our machines are loved and welcomed by customers .
In the deepening of economic reform, in accordance with the requirements of the overall planning, we enhance our traditional manufacturing industry ,so we build the Shandong CNC Machine Tool Production Base in Jiyang city ,Shandong Province .
In this production base ,we produce vertical machining center,cnc lathe,cnc milling ,assembly production line, machine tools and so on ,it will be the world's first-class modern manufacturing enterprises .
In order to strengthen our own technology, research and development advantages ,we ,Tengzhou Luzhong Machine Tool Co.,Ltd ,founded our design company -Luzhong Design Co.,Ltd in 2004 ,which specialize in the design of CNC machine tools .
Our company formed a good win-win relationship with mechanical and electrical companies in provinces, complete sets of companies and foreign agents.
Not only in the country Company formed a mature sales network not only in the country, but also our products are exported to South America, Africa, the Middle East, Southeast Asia and other countries, and are trusted and praised by vast number of users .
Our company focuses on strict and effective management, product quality and service is our eternal pursuit of the theme.
Our company will always be the spirit of "the pursuit of excellence, sincere service" purposes, and strive to provide users with high-quality products and fast, thoughtful after-sales service.
"Regard the quality as life, undertake the heavy responsibility ", with your support, we will get big progress .
Let us join hands to create a better future!
