Zgm Slurry Pump - China

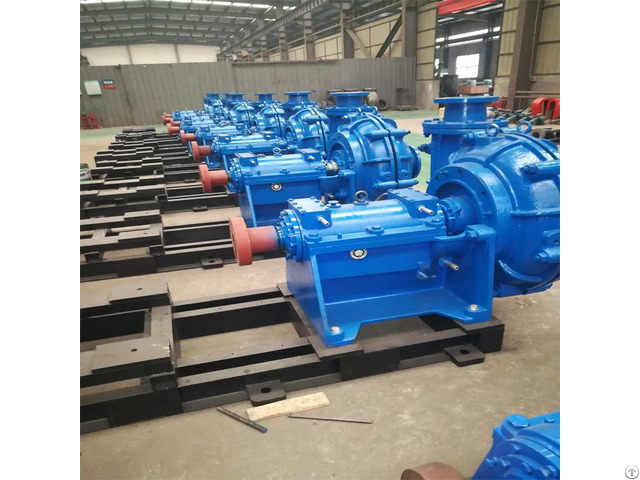

ZGM Slurry Pump

Slurry Pump

mining slurry pump, power plant slurry pump, Ceramics Slurry pump

The ZJ/ZGM series Slurry Pumps, which are created by Hebei Tongda Pump Co., Ltd, is a new generation anti-wearenergy saving, slurry pump.

The ZJ series pumps used international advanced solid-liquid two-phase flow theory and were designed using the Minimum-Wear Principle.

The flow parts of this pumps are suitable for the flow of state media for its set shape, which reduces hydraulic loss of eddy and impact, both in pump and along the pipeline;so reduced friction of flow parts, lower noise and vibration of the pump translates into improved hydraulic efficiency.

The ZJ/ZGM series pumps are cased in hard-alloy which is a high anti-wear and high anti-corrosive impact resistance material, which means the pump will have a longer service life.

Inaddition, this series pumps used an automatic reduced pressure system to avoid liquid leakage.

The ZJ/ZGM series slurry pumps are widely used in mining, metallurgy, power, coal and building material sectors.

The ZJ series pumps are suitable for handling abrasive and corrosive solids-bearing slurry with maximum concentrations of wt.

45%(ash) and wt.

60%(ore).

We have all kinds of ZJ/ZGM series slurry pumps, all of which can be made of directly driven(DC), directly driven via hydraulic coupling(HC), belt driven, and they can be operated in tandem and parallel positions according to the requirements of the customer.

Application Alumina, Copper mining, Iron ore, Gas oil, Coal, Electric industry, Phosphate, Bauxite, Gold, Potash, Wolfram, Water sewerage utilities, Sugar, Tobacco, Chemical fertilizer.

Feeding pump for pressure filter in Coal washery, metallurgy dressing works, power plant ash-handling system

Other slurry pumping condition

Material:

Parts Material Specification

VoluteLiner, Impeller, Throatbush, FPL insert Hard Metal A05: 23~30% A07: 14~18% A12: 30% A49: 27~29% A33: 33~37%Chrome White Iron

Expeller&Expeller Ring Metal A05 23~30% High Chrome Iron G01: Grey Iron

Stuffing Box Metal A05 23~30% High Chrome Iron G01: Grey Iron

Frame Plate, Cover Plate, Base, Bearing housing Metal G01 Grey Iron D21 Ductile Iron

Silicon nitride ceramics

Shaft Carbon Steel Type 1045(ASTM)

Shaft Sleeve, Lantern, Rings, Restrictor, NeckRing, Gland Bolts Stainless Steel 3Cr13, 304SS, 316SS
