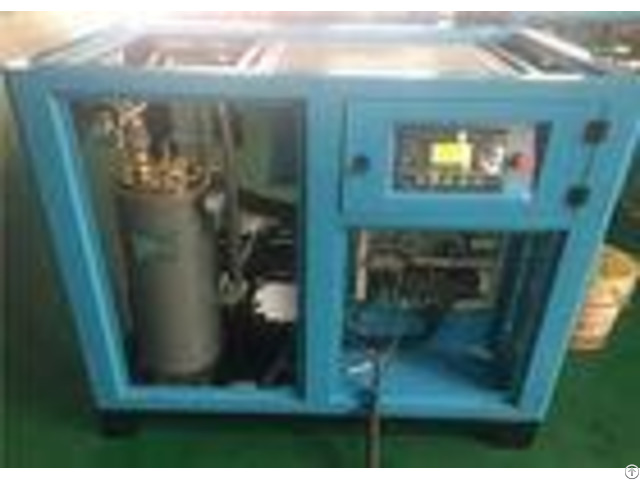

11kw 15hp Direct Driven Rotary Screw Air Compressor Oil Type Energy Saving - China

China Factory 11KWfixed speed direct driven rotary Screw Air Compressor for sale FAQ: 1 - Before quoting, what should users offer? 1).

Discharge pressure (Bar, Mpa or Psi) 2).

Air discharge/Air flow/Air capacity (m3/min or CFM) 3).

Power supply (220/380V, 50/60Hz, 3Phase) 2 - If I don't know the pressure and air flow, what should I do? 1).

Take the picture of nameplate, we will advise the suitable air compressor to you.

2).

Tell us what industry you are, we can advise the suitable one (so as to air tank / air dryer / air filters).

Detailed Product Specifications: - - - - Model | WZS-15AZ | Air Flow/Working pressure | 1.7m3/min @ 7bar | 1.6m3/min @ 8bar | 1.4m3/min @ 10bar | 1.2m3/min @ 12.5bar | Compression stage | Single | Type of Cooling | Air Cooling | Exhaust Temperature | < ambient temperature+8 degrees | Oil content of discharged air | <2ppm | Noise | 702 dB(A) | Power | 380VAC/3phase/50Hz (Adjustable) | Starting way | Soft VSD start | Driven method | Direct-driven | Motor power | 11kw/15hp | Dimension | 1040*800*1180mm | Weight | 400kg | - - - - - - - - WZS- | 10AZ | 15AZ | 20AZ | 25AZ | 30AZ | 50AZ | 75AZ | 100AZ | 125AZ | Air flow/pressure (m/min/MPa) | 1.2/0.7 | 1.7/0.7 | 2.4/0.7 | 3.1/0.7 | 3.8/0.7 | 6.4/0.7 | 10.5/0.7 | 13.6/0.7 | 16.3/0.7 | 1.1/0.8 | 1.6/0.8 | 2.2/0.8 | 2.9/0.8 | 3.5/0.8 | 6.1/0.8 | 9.8/0.8 | 13.3/0.8 | 15.0/0.8 | 0.95/1.0 | 1.4/1.0 | 2.0/1.0 | 2.7/1.0 | 3.2/1.0 | 5.7/1.0 | 8.7/1.0 | 11.6/1.0 | 14.6/1.0 | 0.8/1.25 | 1.2/1.25 | 1.7/1.25 | 2.2/1.25 | 2.9/1.25 | 5.1/1.25 | 7.5/1.25 | 9.8/1.25 | 12.3/1.25 | Motor | Power (kw) | 7.5 | 11 | 15 | 18.5 | 22 | 37 | 55 | 75 | 90 | Horse power (HP) | 10 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 125 | Dimension | Length(mm) | 1000 | 1040 | 1040 | 1100 | 1400 | 1600 | 2050 | 2050 | 2150 | Width (mm) | 600 | 800 | 800 | 850 | 850 | 1000 | 1200 | 1200 | 1300 | Height (mm) | 1000 | 1180 | 1180 | 1300 | 1150 | 1370 | 1500 | 1500 | 1700 | Noise dB(A) | 662 | 702 | 702 | 702 | 712 | 742 | 742 | 752 | 752 | Outlet diameter | G3/4 | G3/4 | G3/4 | G11/4 | G11/4 | G11/2 | G2 | G2 | G2 | Weight (kg) | 240 | 400 | 410 | 590 | 620 | 840 | 1735 | 1850 | 1920 | - - - - - - - - WZS- | 150AZ/W | 180AZ/W | 220AZ/W | 250AZ/W | 300AZ/W | 340AZ/W | 400AZ/W | 480AZ/W | 540AZ/W | Air flow/pressure (m/min/MPa) | 20.3/0.7 | 24.0/0.7 | 27.0/0.7 | 32.5/0.7 | 40.0/0.7 | 43.5/0.7 | 50.8/0.7 | 60.0/0.7 | 72.0/0.7 | 19.0/0.8 | 23.0/0.8 | 26.5/0.8 | 31.0/0.8 | 36.8/0.8 | 42.0/0.8 | 48.2/0.8 | 57.0/0.8 | 68.0/0.8 | 17.0/1.0 | 20.0/1.0 | 22.5/1.0 | 28.0/1.0 | 32.2/1.0 | 38.8/1.0 | 42.6/1.0 | 50.0/1.0 | 60.5/1.0 | 14.6/1.25 | 18.0/1.25 | 20.1/1.25 | 25.1/1.25 | 28.5/1.25 | 34.6/1.25 | 39.8/1.25 | 45.0/1.25 | 50.5/1.25 | Motor | Power (kw) | 110 | 132 | 160 | 185 | 220 | 250 | 300 | 350 | 400 | Horse power (HP) | 150 | 180 | 220 | 250 | 300 | 340 | 400 | 480 | 540 | Dimension | Length(mm) | 2800 | 2800 | 2800 | 2800 | 2900 | 2900 | 4200 | 4200 | 4200 | Width (mm) | 1650 | 1650 | 1650 | 1650 | 1860 | 1860 | 2200 | 2200 | 2200 | Height (mm) | 1850 | 1850 | 1850 | 1850 | 2000 | 2000 | 2150 | 2150 | 2150 | Noise dB(A) | 752 | 752 | 752 | 782 | 782 | 782 | 802 | 822 | 832 | Outlet diameter | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | Weight (kg) | 3030 | 3130 | 3210 | 3470 | 4500 | 4600 | 7000 | 7500 | 8100 | - - - - []
