1600mm Drilling Depth Cnc Horizontal Boring Machine Max Diameter 40 7000rpm - China

price: check with company for price

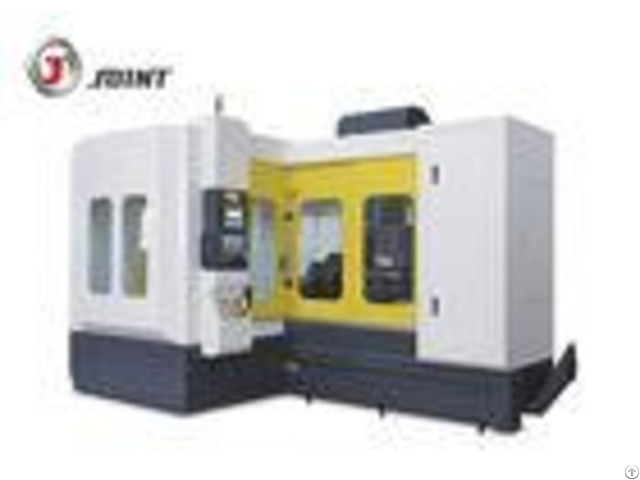

1600mm Drilling Depth Cnc Horizontal Boring Machine Max Diameter 40 7000rpm

Products Photos Catalog 1600mm Drilling Depth Photos Catalog

Drilling Depth 1600mm Cnc Deep Hole Drilling Machine Making An Deep Hole Max Diameter 40 Product Feature 1 - Combining the advantages of each model as a whole, 2 - the work table can satisfy the market most of the mould processing, 3 - body rigidty structure is reasonable, 4 - stable processing broadsword, 5 - humanized design of a support frame, convenient assembly and disassembly, assembly and disassembly tool and reduce time Processing Range 1 - It is application for deep hole working of various types of workpieces: a.

Moulds (including water pores, hot runners, centre holes, guide post holes, and ejector sleev holes ) b.

hydraulic value, distributor and heat exchanger plate, c.

waterway hole, 2 - Convenience for processing various deep holes, 3 - Better solution for such various specific deep holes as cross holes, inclined holes, blind holes, and flate blind holes, advance and efficiency and consistency Specification - - - -

Model | TL1600 | Number of drilling spindle | Uniaxial | Inner diameter of drilling | 2.5-40mm | Max depth of drilling | 1600mm | Size of working table | 1800*1100mm | X axis travel | 1600mm | Y axis travel | 1100mm | Z axis travel | 1650mm | Drilling cutting feed rate | 10-250mm | Max rotary speed of spindle | 7000rpm | Spindle motor | (servo)11-15kw | Moving motor from right to left on work table | servo 3.0kw | Moving motor from up to down on spindle | servo 3.0 kw | Moving the motor from front to back on spindle | servo 2kw | Pressure of cutting pressure pump | 80 kgf/cm | Oil mass of oil pressure pump | 6-60 L/min | Capacity of cutting oil tank | 700 L | load capacity of working table | 10000kgs | machine net weight | 13000kgs | Machine power | 30kw | - - - - Standard accessories Taiwan spindle Fanuc or Mistubishi controller Spindle oil cooler+NSK Bearing gundrill+precision guide sleeve and rubber guide grinder machine HIWIN linear way


Company Contact:


  • Phone: 86-755-15218746521

  • Address: BLOCK 64 FUMIN INDUSTRY ,PINGHU TOWN,LONGGANG DISTRIC ,SHENZHEN CITY, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 28, 2018

  • Business Description: Shenzhen Joint Technology CO., LTD., was established in 1995 - Our headquarter is located in PingHu town, Shenzhen, China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality
