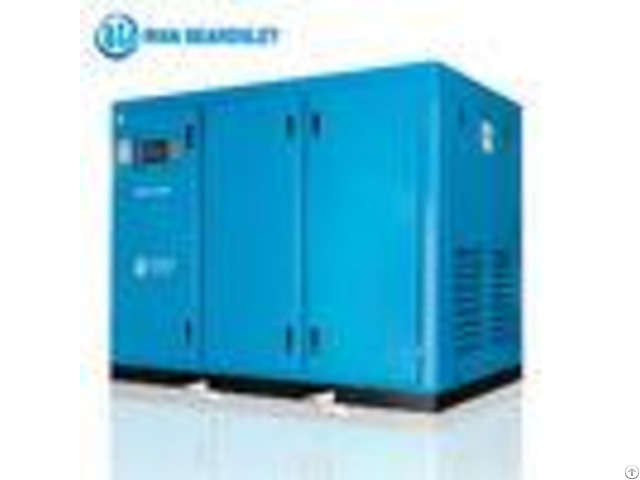

22kw Lubricated Oil Two Stage Screw Compressor Direct Driven 4 1m3 Min - China

China Factory22KW Two-stage compression screw air compressor 4.1m3/min @116psi / 8bar Company profile: Wan Beardsley Compression Machine (Shanghai) Co., Ltd is a medium and large-sized enterprise specialized in research, development and production of air compressors.

By virtue of fruitful technological strength and advanced and complete production and testing equipments, this company pursues enterprise tenet Achieve high quality with conscientiousness and create a centennial brand with quality, strictly performs the commitment be the most energy-efficient screw air compressor, continuously seeks for sustainable improvement of products, process and system, and increasingly improves product properties, quality and reliability so as to make out R & D and manufacturing capacity step onto a new stair in manufacturing technology of air compressor.

Our product quality has reached internally first-class level, and some products have been exported to and supported Southeast Asia and European and American markets.

FAQ: 1 - Before quoting, what should users offer? 1).

Discharge pressure (Bar, Mpa or Psi) 2).

Air discharge/Air flow/Air capacity (m3/min or CFM) 3).

Power supply (220/380V, 50/60Hz, 3Phase) 2 - If I don't know the pressure and air flow, what should I do? 1).

Take the picture of nameplate, we will advise the suitable air compressor to you.

2).

Tell us what industry you are, we can advise the suitable one (so as to air tank / air dryer / air filters).

Detailed Product Specifications of Two-stage compression screw air compressor: - - - - Model | Power (KW) | Capacity/Pressure ( m3/mpa) | Outlet size | Weight (kg) | Unit size mm (LxWxH) | WZS-30AZII | 22 | 5m3/0.6mpa | RP 1 1/2 | 760 | 1500x850x1280 | 4.1m3/0.8mpa | 3.5m3/1.0mpa | 3.2m3/1.3mpa | WZS-40AZII | 30 | 7.0m3/0.6mpa | RP 1 1/2 | 980 | 1950x1250x1650 | 6.4m3/0.8mpa | 4.9m3/1.0mpa | 4.2m3/1.3mpa | WZS-50AZII | 37 | 10m3/0.6mpa | RP 1 1/2 | 1080 | 1950x1250x1650 | 7.1m3/0.8mpa | 5.9m3/1.0mpa | 5.4m3/1.3mpa | WZS-60AZII | 45 | 12m3/0.6mpa | RP2 | 1980 | 1950x1250x1650 | 9.8m3/0.8mpa | 7.8m3/1.0mpa | 6.5m3/1.3mpa | WZS-75AZII | 55 | 16m3/0.6mpa | RP2 | 2180 | 2500x1650x1900 | 12.5m3/0.8mpa | 10.2m3/1.0mpa | 8.6m3/1.3mpa | WZS-100AZII | 75 | 18.5m3/0.6mpa | RP2 | 2280 | 2500x1650x1900 | 16.5m3/0.8mpa | 13m3/1.0mpa | 10m3/1.3mpa | WZS-125AZII | 90 | 23m3/0.6mpa | DN65 | 3200 | 3000x1800x2000 | 18.5m3/0.8mpa | 15.5m3/1.0mpa | 12m3/1.3mpa | WZS-150AZII | 110 | 27.5m3/0.6mpa | DN65 | 3360 | 3000x1800x2000 | 22.6m3/0.8mpa | 18.5m3/1.0mpa | 14.8m3/1.3mpa | WZS-180AZII | 132 | 32.5m3/0.6mpa | DN80 | 3560 | 3000x1800x2000 | 28m3/0.8mpa | 22.5m3/1.0mpa | 18.5m3/1.3mpa | WZS-220AZIII | 160 | 37.5m3/0.6mpa | DN80 | 3850 | 3380x1950x2200 | 32.6m3/0.8mpa | 26.8m3/1.0mpa | 22.8m3/1.3mpa | WZS-250AZII | 185 | 40.6m3/0.6mpa | DN80 | 4600 | 3380x1950x2200 | 37.8m3/0.8mpa | 32.5m3/1.0mpa | 26.6m3/1.3mpa | WZS-270AZII | 200 | 49m3/0.6mpa | DN100 | 5200 | 3380x1950x2200 | 41m3/0.8mpa | 38.5m3/1.0mpa | 31.5m3/1.3mpa | WZS-300AZII | 220 | 54.8m3/0.6mpa | DN125 | 6200 | 4000x2250x2400 | 49m3/0.8mpa | 41.5m3/1.0mpa | 37.5m3/1.3mpa | WZS-350AZII | 250 | 61m3/0.6mpa | DN125 | 6600 | 4000x2250x2400 | 54m3/0.8mpa | 45.5m3/1.0mpa | 40.5m3/1.3mpa | - - - - Our Advantage: Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency, Wan Beardsley screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on, the product uses intelligent module control system and favorable human-machine interface to realize fault self diagnosis, servo-type gas flow automatic adjustment and 24-hour unattended operation, and it belongs to one of the most advanced machine type both home and abroad.

At present, Wan Beardsley series of screw air compressors include: integrated permanent magnet variable-frequency series, non-inductive permanent magnet variable-frequency series, servo permanent magnet variable-frequency series, low-pressure permanent magnet variable-frequency series, two-stage compression permanent magnet variable-frequency series, oil cooling permanent magnet variable-frequency series of screw air compressors, refrigerated dryer series, adsorption dryer series, combined dryer series, high-efficiency precision dryer, gasholder, etc.

Products are extensively applied to industries like machinery, furniture, textile, chemical fiber, medicine, food, metallurgy, electronics, war industry, environmental protection, etc.

[]
