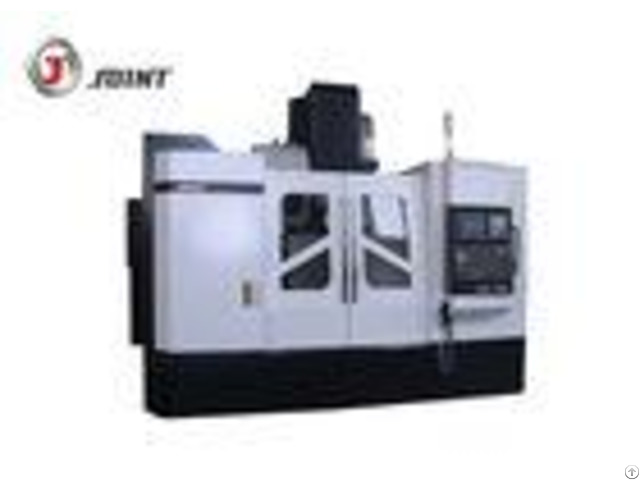

800mm X Travel Vertical Machine Center 7 5kw Rapid Feed 30m Min Vmc850l - China

800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / minVMC850L Product features: 1 - High rigidity structure, best stabilization.

2 - Main structure achieves its best high rigidity and stablization through the analysis of finite element.

3 - The stabilization of castings machining precision can be guaranteed through twice seasoning.

4 - All three axles adopt pre-pulling function and this can avoid distortion when heating and make sure the precision when fast operating.

5 - Three axles x, y, z all adopt famous brandguide which is of high rigidity, low noise and less friction.

This can do fast displacement and get best circle precision.

6 - Adopting the high-speed, high precision guide rail.

Why choose us: 1 - We have exported machine to over 100 countries, and we have good reputation from market.

2 - We have professional technology and service teams.

3 - Strict quality control procedures from purchase, produce, installation, debugging.

4 - Commodity diversification.

We can offer various CNC machines for different usage.

Specification Of Vertical machine center VMC850L - - - - Model | Unit | VMC-850L | Travel | X axis | mm | 800 | Y axis | mm | 500 | Z axis | mm | 500 | Distance between spindle and table | mm | 110-610 | Working table | Table size | mm | 1000*500 | Max.

Load of table | Kg | 450 | T slot | Pcsmm-mm | 5-18-90 | Positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.008 | Repeated positioning accuracy | X/Y/Z axis | mm | 0.005/0.005/0.007 | Spindle | Spindle rotation speed | Rpm | 8000 | Spindle taper | | BT40 | Diameter | mm | 150 | Rivet model | | BT40 45 | Rapid feed | X/Y/Z axis | m/min | 30/30/18 | Cutting feed | X/Y/Z axis | m/min | 10 | Tool magazine | Umbrella type | Size | Tools | 16 | Too changing time (T-T) | Sec | 6 | Max.

diameter/ length/weight of tool | mm | 100/200/8 | Max tool diameter (no tool adjacent) | mm | 180 | Arm type | Size | Tools | 24 | Tool changing time (T-T) | sec | 3.5s | Max.

diameter/ /length/weight of tool | mm | 80/200/8 | Max tool diameter (no tool adjacent) | mm | 150 | Total capacity of electric | KVA | 15 | Weight of machine | Kg | 5400 | Dimension | mm | 2750*2380*2600 | - - - - Standard Accessories: Fanuc/MitsubishiControlle r system Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit Working light Tool and tool box Optional accessories: Siemens controller or other controller system Spindle oil coolant Umbrella type tool magazine Arm type tool magazine Screw type auto conveyor Chain type tool magazine 4 Axis rotary table Ring spray spindle
