Bag In Box Forming Line Carton Erector And Lining Machine - China

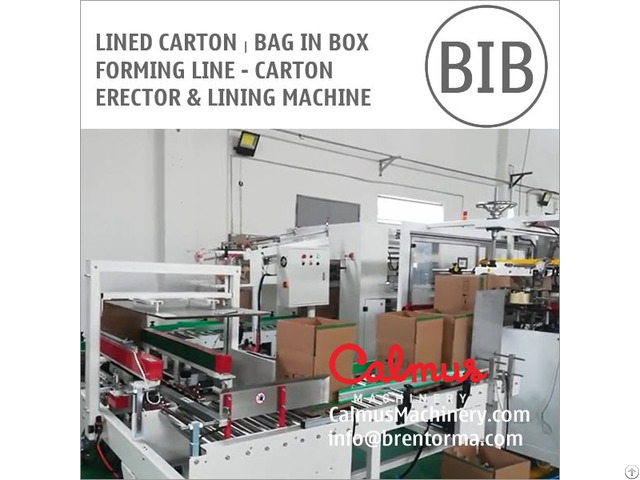

Bag in Box Forming Line - Carton Erector and Lining Machine This Bag in Box Forming Line erects cartons and seals bottoms, inserts poly bags in cartons by one each from a roll stock film, opens and cuffs the bag over the carton flaps, blow air to expand the bags to fit on the internal wall of cartons better to form lined cartons ready for filling products.

This line includes a carton erector and a poly bag inserter (also called carton lining machine).

1 - Carton Erector

Also called case former.

It erects cartons, folds and seals bottoms with tape or hot-melt glue.

Specifications:

Erecting type: vertical or horizontal.

Sealing media: tape

Erecting capacity: max.

10 cartons/min or 25 cartons/min (depends on the carton size)

Applicable carton dims: 410mmW/2+H>310mm

Applicable tape width: 4.8-7.2cm

Power supply: single phase, 400 W/1.5kW

Compressed air: 6 bar

Carton storage: 50 pcs (depends on the thickness of fold-flat carton) 2 - Carton Lining Machine

Also called Poly Bag Inserter or Liner Placer.

This carton lining machine inserts a poly bag in a box from a roll stock film, open and cuff the bag over the carton flaps, blow air to expand the bag to fit on the internal wall of carton better.

The bag inserter reduces labor and material costs, is simple to operate and easy to adjust.

High efficiency and labor saving.

Specifications:

Inserting capacity: 6-7 cartons/min

Film width: 460-840mm

Applicable carton dims: L250-550*W200-400*H150-40 0mm, also can be customized

Power supply: 3 phase, 4.5 kW

Air consumption: 100 NL/min

Machine dims: L3322*W2177*H2350mm (for reference only) We are also able to manufacture high-speed carton lining machines with 12 cartons/minute.
