Cheap Pneumatic Atc Auto Tool Changer Cnc Router For Panel Furniture - China

price: 9700.00 Dollar US$

Cheap Pneumatic Atc Auto Tool Changer Cnc Router For Panel Furniture

Products Photos Catalog Pneumatic Atc Auto Photos Catalog

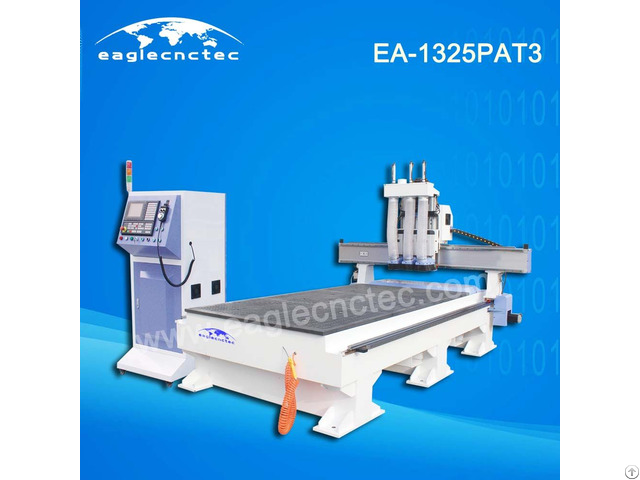

Cheap Pneumatic ATC Auto Tool Changer CNC Router for Panel Furniture

Technical Parameter

Working Size (X Y Z) 1300×2500×200 mm

Driving Motor Servo

Controller NC Studio

Repositioning ±0.02mm

Resolution ±0.0025mm

Command G-code

Max.

Traveling Speed 45, 000 m/min

Max.

Working Speed 20, 000 m/min

Body Construction Heavy duty type

Work-Holding By vac-sorb

Vacuum Pump 5.5KW, water-ring, 230CBM/hour flow rate

X Y Transmission Helical rack and pinion, HIWIN square linear guide way

Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way

Spindle 6.0kw, air cooling, 0-18000 rpm variable speed

Collet Size ER32, available diameter of cutter φ3.175-φ20mm

Tool Magazine Pneumatic tool changer, 3 tools

Working Power AC 380V/50-60Hz, 3 Ph 4 Wire

Max.

Power Consumption 26KW

Small Electronics Schneider, Omron, CHINT

Net Weight 2300 KGS

Packing Plywood case suitable for sea shipment


Company Contact:


  • Phone: 86-13065026945

  • Address: Gongyebei Road, Jinan , Shandong , China

  • Email: Email


Published date: December 13, 2016

  • Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.

    Also, we can provide you technical assist on router machines.

    Our team has over 15 years of experience designing, building and operating CNC machines.

    Through the years, we have seen changes and development of this field including hardware and software technology.

    We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
