Description:

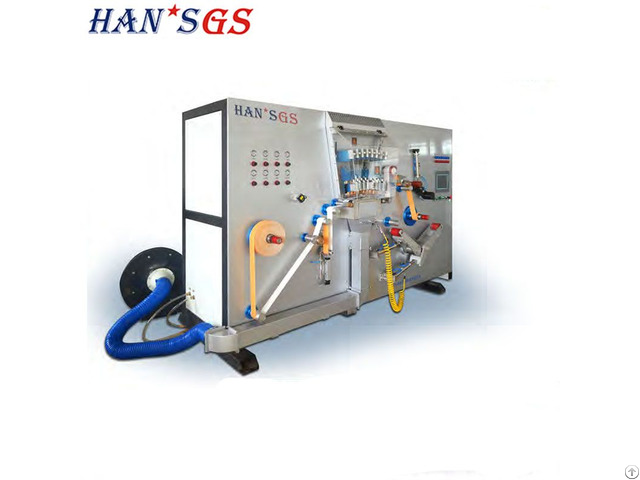

HANS*GS-D400P laser perforating machine equips OEM40iX totally metal enclosed CO2 laser generator of German ROFIN-SINAR company, and OEM40iX laser generator adopts the latest power feedback technology and the power output of closed-loop control laser generator, its power output can be adjusted continuously by the feedback signals of sampling power, in order that the power output instability would be controlled within ±2% and the long-running beam pattern would keep stable, the continuous running time without fault would reach over 10000 hours, besides, the beam quality is very good, and the function is reliable, so the overall lifetime is more than 10 years.

Optical splitting system

HANS*GS-D400P laser perforating machine equips eight focusing optical heads, which are fixed the respective mechanical skid plateform, and the mechanical skid plateform is assembled in the host panel, while the dimensional mechanical skid plateform can adjust the longitudinal pitch of perforating and focus precisely, and you can set the value of holes pitch directly on the touch screen.

Each optical head is composed of 4 lenses, all the lenses are from American II-VIcompany.

Adopting the totally sealed optical circuits, it can avoid the contamination of external environment to the optical circuits lenses.

The piping of dedusting system is assembled in the front of the puncher, in order to avoid the contamination of the box interior and optical circuits.

Regarding OEM40iX laser generator, the operation is very simple, using the menu selection type, you can set and select power output, frequency, beam pattern directly in the control box of laser generator.

Owning to the connection between the laser generator and PLC of control cabinet, PLC can be responsible to start the generator, stop the generator, have interlocking control, and debug according to the received operation signals.

When the generator or exterior circuit meets with the faults, you can stop the generator in time and on the touch screen, it will show the faults reason and positions.

Only when the generator can satisfy the certain condition of interlocking, you can start it, in this way, even if it occurs to the mistake operation, it won't destroy the laser generator or other parts of equipment.

water -chilling unit

The water -chilling unit is researched and developed by ourselves, and it's a professional water-chilling system, and equips 3 refrigerators, water tank of stainless steel with 300L capacity.

It can control the water temperature and flow at real time and has warning equipment, its water is purified water, with filter.

The water temperature keeps at 20±0.5ºC constantly.

Application:

This set of equipment can realize ventilation and tar reducing through perforating tipping paper of cigarette filter tip in production line and to reduce the harm of smoking to human body.
