China Router Cnc 2030 Factory - China

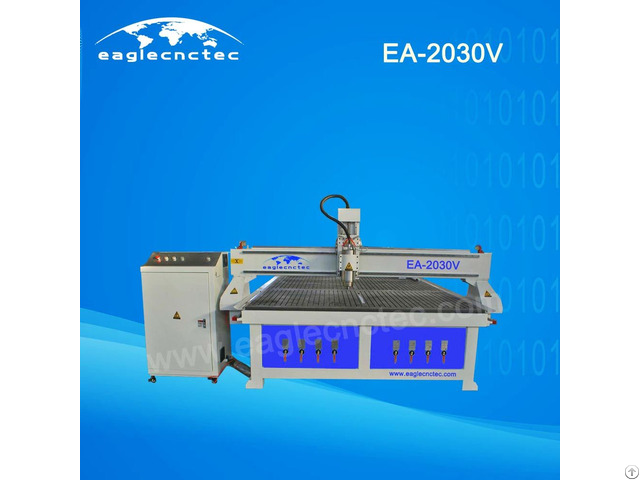

China Router CNC 2030 Factory

Application

Materials good for router cnc is solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Field: Wood door, cabinet, office furniture etc.

Machining capacity: engraving, routing, cutting and boring.

Technical Parameter of China Router CNC

Working Size (XYZ) | 2000×3000×200mm

Max.

Flying Speed | 35, 000mm/min

Max.

Cutting Speed | 18, 000mm/min

Spindle | 4.5kw, water cooling, adjustable speed 0-18, 000RPM, ER25

Engraving Tools Diameter Range | 3.175-16mm

Controlling System | DSP

Command | G code

Motor | Stepper, big torque

Work-holding | Vac-sorb and clamp

Vacuum Pump | Water ring, 5.5kw, air flow 230CBM/h

Transmission (XY) | Helical rack and pinion drive

Transmission (Z) | Rolling balls crew drive

Max.

Power Consumption | 14kw

Power Supply | AC380V/50-60Hz, 3Ph 4 Wires

Net Weight | 1600KGS

Optional configuration for router cnc 2030

(1) Spindle power：6.0kw, 7.0kw, 9.0kw

(2) Cooling mode of spindle: air cooling
