Customized Voltage Vertical Cnc Machine Center Bt40 45 Spindle Vmc1060l3 - China

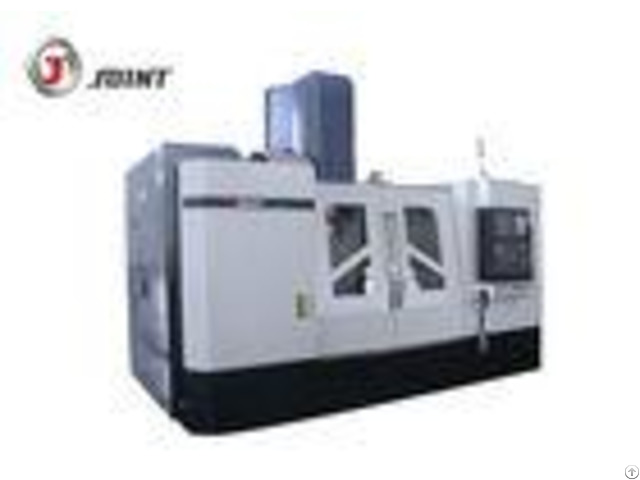

Customized Voltage Vertical CNC Machine Center BT40 45 Spindle VMC1060L3 Product description: The VMC1060L3vertical machining center consists of main engine, CNC system, electrical control system, automatic lubricating system, cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.

The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process.

It is suitable for processing all kinds of high precision, working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integration solutions.

Product features: 1 - The Machine bode(i.

e: Base, columns, crossbeams and etc) are made of high grade cast iron.

2 - The layout of reinforcing rib plate analysis and calculated by rigid optimization, and with years of experience to set effective annealing process to eliminate residual stress, so that to keep machine accuracy stablely and effectively for a long time.

3 - The machine body and column structure made by casting, To improve the rigidity and long - term precision effectively.

4 - Adopt advanced working machine (large size imported gantry machining center and guide rail grinding machine), achieved required process accuracy, laid a good foundation for assembly.

Specification Of Vertical machine center VMC1060L3 - - - - Model | Unit | VMC-1060L3 | Travel | X axis | mm | 1000 | Y axis | mm | 600 | Z axis | mm | 600 | Distance between spindle and table | mm | 170-770 | Working table | Table size | mm | 1300*600 | Max.

Load of table | Kg | 800 | T slot | Pcsmm-mm | 5-18-100 | Positioning accuracy | X/Y/Z axis | mm | 0.008/0.008/0.008 | Repeated positioning accuracy | X/Y/Z axis | mm | 0.006/0.005/0.005 | Spindle | Spindle rotation speed | Rpm | 8000 | Spindle taper | | BT40 | Diameter | mm | 150 | Rivet model | | BT40 45 | Rapid feed | X/Y/Z axis | m/min | 30/30/30 | Cutting feed | X/Y/Z axis | m/min | 10 | Tool magazine | Umbrella type | Size | Tools | 20 | Too changing time (T-T) | Sec | 6 | Max.

diameter/ length/weight of tool | mm | 100/200/8 | Max tool diameter (no tool adjacent) | mm | 180 | Arm type | Size | Tools | 24 | Tool changing time (T-T) | sec | 3.5s | Max.

diameter/ /length/weight of tool | mm | 80/200/8 | Max tool diameter (no tool adjacent) | mm | 150 | Total capacity of electric | KVA | 20 | Weight of machine | Kg | 7500 | Dimension | mm | 3300*2690*2950 | - - - - Standard Accessories: Fanuc/MitsubishiControlle r system Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit Working light Tool and tool box Optional accessories: Siemens controller or other controller system Spindle oil coolant Umbrella type tool magazine Arm type tool magazine Screw type auto conveyor Chain type tool magazine 4 Axis rotary table Ring spray spindle
