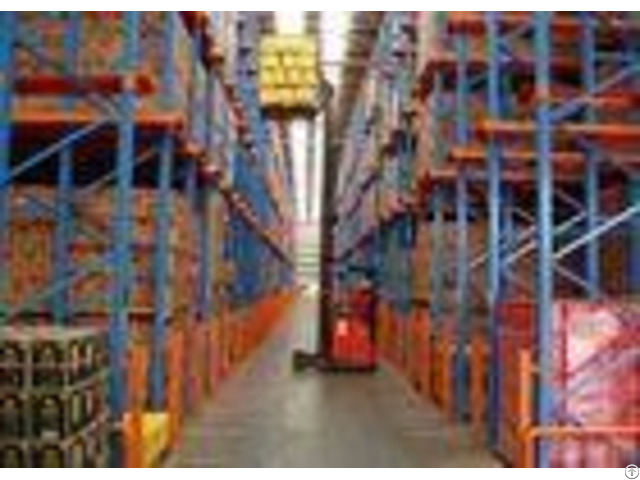

Customzied Cold Rolled Drive In Pallet Racking For Industrial Warehouse Storage - China

Exported Oversea Drive in Pallet Racking Warehouse Storage Made in China Description: 1 - Drive in rack system is last in first out store system.

Suits for unified palletized goods.

2 - Drive in rack system is a high density store system.

It can use most of the warehouse space.

So it can save space, save store cost.

In the same area, push back rack can store much more goods.

3 - Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Features: 1 - Maximized space utilization.

2 - Improved SKU management.

3 - Less on-hand inventory and more inventory turns.

4 - More efficient picking abilities with less chance of errors.

5 - Improved on-time product delivery by consolidating orders with less errors.

6 - Increased product protection.

7 - Reduced labor costs.

8 - Increased throughput and flow.

9 - Improved safety.

10 - Improved facility layout and appearance.

11 - Improved ergonomics and reduced worker fatigue.

- - - - Product Name | Cold Rolled Steel coils Heavy Duty colorful drive in Rack made from steel | Material | Steel Q235 | Loading Capacity | Customized and up to 4, 000 Kg UDL/level | Racking Height | Customized and up to 11, 000 mm | Racking Depth | 700-1, 200 mm | Beam Length | Customized and up to 3, 600 mm | Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) | Packing Details | Standard export seaworthy packing | - - - - - - - - Specifications of Upright | Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) | 1 | 85 | 67 | 1.6 | 7000 | 2 | 85 | 67 | 1.8 | 8500 | 3 | 85 | 67 | 2.0 | 10000 | 4 | 85 | 67 | 2.3 | 12500 | 5 | 100 | 67 | 1.8 | 10500 | 6 | 100 | 67 | 2.0 | 12000 | 7 | 100 | 67 | 2.3 | 13800 | 8 | 100 | 95 | 2.0 | 12000 | 9 | 100 | 95 | 2.3 | 14500 | 10 | 100 | 95 | 2.5 | 16000 | 11 | 100 | 95 | 2.75 | 18000 | 12 | 100 | 95 | 3.0 | 20000 | 13 | 120 | 95 | 2.5 | 17000 | 14 | 120 | 95 | 2.75 | 19000 | 15 | 120 | 95 | 3.0 | 21000 | - - - - Frames: Product Details Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.

The frames have slots every 75mm to accommodate the beams and supports.

Arms: There are two types of arms, which are single arm (left side and right side single arms) and double arm.

The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails: Support rails are stamp formed and the length can be customized.

The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings: Top beams and top bracings are used to increase integrity and stability of the racking system.

Company Contact:

• Posted By: Dongguan Zhijia Storage Equipment Co.,ltd

• Phone: 86-0769-81553949

• Address: NO.35, Binhe Road, Shatou District, Changan Town, Dongguan City, Guangdong Province., Dongguan , Guangdong , China

• Email:

• Website: https://www.industrialsteelstorageracks.com

• Business Description: Dongguan Zhijia Storage Equipment Co., ltd is established in 2011 and it is a professional warehousing and logistic equipment company.

  We are specialized in designing, manufacturing and installing storage equipment and aiming to provide cost-effective and space utilization storage solutions for customers
