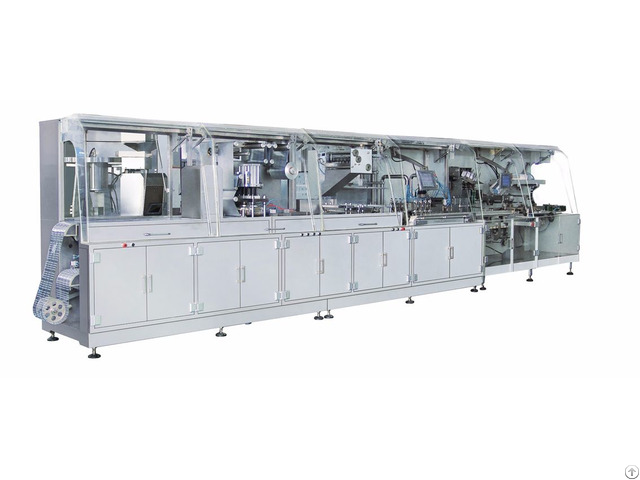

Dh120 Lntelligent High Speed Medicine Packaging Production Line - China

Capability and Characteristics:

1 - Adopt servo driving, PLC realizes multishaft high precision synchronous running with international advanced level.

2 - Adopt advanced man-machine interface and alarm system to ensure normal running and easy operation.

3 - Adopt safe and reliable on-line vision detecting and rejecting system to ensure better quality of product.



4 - Change the running speed automatically according to output match and different packing requirement, to balance the system.

5 - Only need to change few parts and simple adjustment when changed the product specifications, which is very fast and convenient.

6 - All transmission systems adopt synchronizing belt with flexible coupling and strong resistance to impact, no need lubricating oil, which is healthful and easy to maintain.

7 - In whole layout, clean areas and unclean areas are separated for compliance with GMP requirements.

8 - Adopt innovative and transparent security casters to enhance general view and security of the machine.

Main Function:

PVC blister forming, Material automatic filling, filling detection, PTP hot-sealing, waste reclaiming, cutting; automatic encasing of blisters and leaflet, and waster automatic eliminating.

Applicable Object:

Solid articles in chemical industry, light industry and food industry, such as nutrient pills, capsules etc.

Packaging Material:

Pharmaceutical PVC hard pieces: (0.20~0.40)mm

PTP Al foil: (0.05~0.17) mm

Dialyzing paper : (50~100g/m2) mm

Scroll Aperture×Width: Φ350×250 mm

Paper cartons size: (70～150)×(50～110)×( 15～40)mm

Material: 250～350 g/m2

Manual leaflet before folding: (100～250)×(100～150)m m

Manual leaflet after folding: (100～150)×(20～40)mm

Material: 50～70 g/m2

Usaging Requirements:

Clean compressed air: Pressure 0.8～1.0 Mpa;

Air consumption (Air compressor) ≥1.0 m3/min

Power consumption: 380V 50 Hz 16 Kw (related with packaging article)

Cooling water of moulds: Cooling water of moulds: Max100L/h

Main Technical Parameters:

Item

Parameters

Output

≤110 cycles/min 80~120 cartons/min (related with

material and medicine card size)

(Max forming area and depth)

240×230×15 mm；

Material filling rate

97~99%(related with material nature)

Finished product rate

≥99%

Eliminating rate of waster

100%

Working noise

≤80dB(A)

Overall Dimensions

(L×W×H) (9000×1600×1950)mm(prin cipal machine)

Weight

8500kgs
