Double Position Glue Dispenser - China

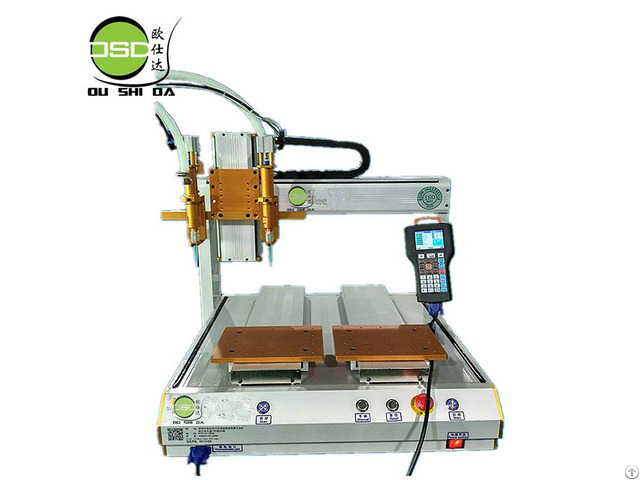

Double position glue dispenser with multiple glue dispenser

Hot Melt Glue Dispenser

Hot Melt Glue Machine

hot melt glue dispenser Supplier, automatic dispensing equipment

TFT-4A4331 · Model TFT-4A4331

· CODE 3.02.001 - TFT-4A4331

· Working Range X/Y/Z(mm) 400/300/300/100

maximum loadY / Z 6kg/3kg

movement speed X&Y / Z (mm/sec) 0.1~400/200

capacity of decomposition 0.02mm/Axis

repeatability ±0.02mm

· Robot Weight(kg) 70

boundary dimension 620×690×620mm

· Program Capacity 100 groups, each group 4000point(usb disk copy is supported)

display usage Instruction box LCD (320X240)

· Motor System Japanese micro step precision motor

operator schema Point to point/continuous line segment

kind of drive Synchronous belt + precision linear guide

· Interpolation Function 3axis(any route in 3D stereo space is acceptable)

edit mode Teach box/PC

I / 0 signal 4 Inputs/4 Outputs

· External Control Interface RS232

input power AC220V

operating ambient temperature 5～40℃

· Working Relative Humidity 20 ~ 90% without condensation

1 - Die casting aluminum profile structure, beautiful appearance and strong consistency

2 - CNC CNC machining is adopted for mechanical parts to ensure the precision and consistency of parts

3 - Standard assembly process, 100% strict machine calibration standard, and ensure machine accuracy;

4 - High standard core components, stable and reliable quality, durable: brand stepping motor, Japan's latest technology synchronization

With the straight guide rail of Taiwan brand;

5 - Smooth and smooth running at high speed with low noise;

6 - Adopt the special assembly process of synchronous participation wheel and motor, and combine the brand synchronous belt of the latest Japanese technology to solve the problem thoroughly

Problems of tension and loosening of synchronous belt after long-term use;

7 - Modular assembly process, each key part and key position can be separately disassembled, and any accidental damage parts can be quickly

The speed change

8 - Adopt the imported brand folding belt shielding cable, so that the operation of the machine will be more free from worries of the future.

Lack of equality risk.
