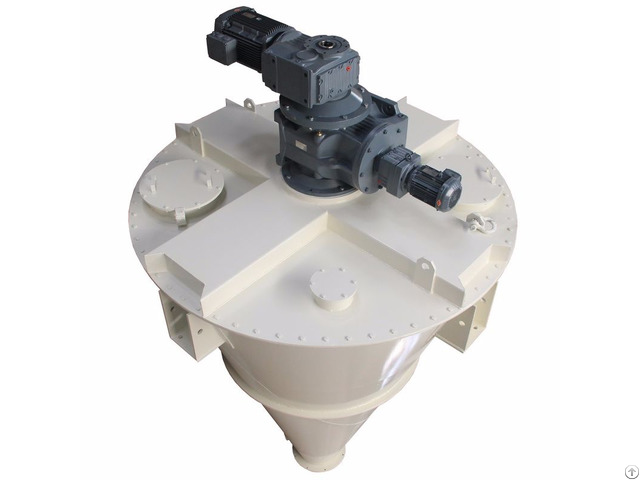

Double Screw Conical Powder Mixer For Chemical Dyestuff Battery Rare Earth Line - China

Conical mixer is widely used in chemical, dyestuff, battery and rare earth line.

Working principles:

Double screw conical mixer rotated around its axes by right of two internal asymmetric spirals which is installed on the cantilever.

Mean while, the rotational force from the cantilever drive two spiral doing revolution around conical chamber axle wire.

Double screw conical mixer has 4 direction forces:

1 - Two inner asymmetric spiral upgrade materials by rotation.

2 - Tumbler low-speed rotation makes material circle motion.

3 - Spiral rotation and revolution make materials absorbed while diffuse to circle direction.

4 - Two flow materials upward then down to center, which come into being a downward material flow.

This way can full the bottom gap and form a convective circulation.

Standard Configuration:

1 - Choose the batch working capacity from 0.1cbm to 20cbm, select mixer accordingly.

2 - Choose raw material for the part contact with raw material, non-contact with raw material, other parts like motor and reducer, bearing material can not be chosen; According to the material to be mixed, processing condition, health level, raw material can be mild steel, sus304, sus316L, sus321; And choose the surface treatment according to the raw material.

3 - Motor power is chosen according to the material gravity, fluidity, and operation.

Operation is divided as: Start mixer when it is empty (normal duty); Start mixer with load (heavy duty)

4 - Adding the auxiliary components like spraying, heating and cooling according to processing condition.

5 - Mixer inlets: feeding ports, cleaning port, vent.

6 - Chose discharging and driven mode: manual, pneumatic and electric.
