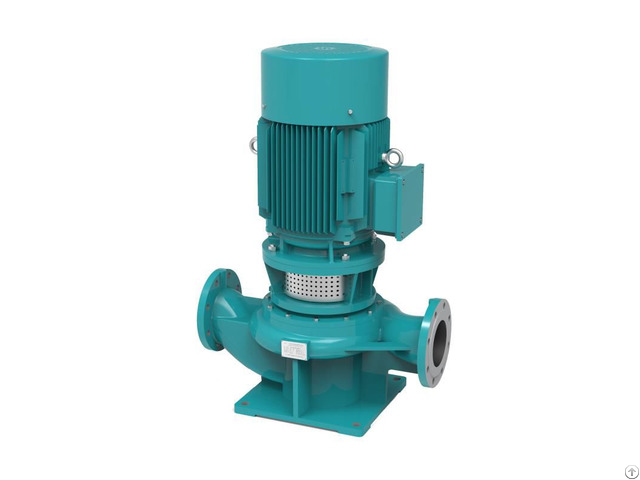

Electric Single Suction Vertical Inline Centrifugal Water Pump - China

Overview

Carry clean water or the liquids which is similar to clean water, supply water for industry and city, pressure booster for water supply for high building, fire protection, long distance transportation, carry circulation cooling for air condition carry the liquids which is similar to water in manufacturing process are, also use with the fire fighting or life pressure booster system.

Pump with the same specification can change the performance parameters by cutting the outer diameter of the impeller;the normal speed of the pump is 1450RPM and 2900RPM, if it is required to operate at the maximum speed of 3550RPM(60Hz power supply), our company can provide technical instruction on the change of the outer diameter of the impeller

The type NLG pump features simple structure, reliable performance, small volume, light weight, high efficiency, good ati-cavitation performance, low power consumption and convenient use and maintenance

The pump is suitable for pumping medium at temperature of -10~85ºC and working pressure of 1.0MPa, if there is a need to increase to 1.6MPa or higher, please specify when selecting and ordering

Company Contact:

• Posted By: LEO Group Pump (Hunan) Co., Ltd

• Phone: 13148710637

• Address: No.9 Jiuhua Road, Jiuhua Eco-tec Development Area, Yuhu District, Xiangtan , Hunan , China

• Email:

• Website: https://www.leogroup.cn/pumps/english/

• Business Description: LEO Group Pump (Hunan) Co.

  Ltd. founded in 2000,it is a wholly-owned subsidiary established and invested by LEO Group Co., Ltd. and located in Jiuhua Economic Development Zone of Xiangtan City, Hunan Province.

  It covers an area of 253.2 Mu and construction area of approx.

  92,635 m2 with total investment of approx.

  490 million yuan.

  It is the most important R&D, manufacturing and testing center of LEO group.

  The leading products include large mixed flow pump, large mixed axial flow pump (vertical, horizontal, oblique, tubular, submersible etc.

  ), double-suction centrifugal pump, multistage centrifugal pump, slurry pump, desulphurization pump and submerged centrifugal pump.

  Conventional products are mainly used in mine, metallurgy, coal washing, FGD, municipal water etc.

  There are numerous high-grade precision and advanced processing equipments, such as 8m CNC vertical lathe and 5-axis linkage machining center, 6m CNC grinding machine and 14m deep well-type thermal treatment furnace.

  A world-class pump testing center with testing power up to 12,500 kW realizes high precision tests for real pumps which are used for power station, water conservancy and water resources, petrochemical industry, mining and metallurgical industry.

  The company is a nationally recognized technology center with strong technology research and development capabilities.

  It undertakes large-scale water conservancy projects such as the National South-to-North Water Diversion, the Yangtze River to Huaihe River Diversion Project, and the Yellow River Diversion Project, and has newly developed several models for large vertical volute pumps, double-suction centrifugal pumps, multi-stage split pumps, vertical guide vane mixed flow pumps, and axial flow pumps.

  Some models have been successfully accepted at the China Water Resources Beifang Investigation, Design and Research Co.

  Ltd. (BIDR) , efficiency reaching the international top level.

  Following models will be applied in the Pearl River Delta, the second phase of the South-to-North Water Diversion, and the Belt and Road Initiative etc.

  national key projects.

  LEO has established a complete product quality management system, from product design and development, manufacturing, parts inspection to after-sales service in full compliance with the requirements of the ISO9001 quality management system, thus ensuring that production and operation activities can be highly efficient and high-quality The operation of each product can serve users efficiently and reliably.

  As a backbone enterprise in the pump industry,we will vigorously promote the Leo spirit of "exploiting,never at rest",emphasize customer value and organizational execution,give full play to the innovation mechanism and sonstantly improve themselves,to provide customers with first-class products and quality services,strive to realize the Leo peoples's broad vision of "improving the image of the fluid machinery industry in China,achieving a industry leader of sustainable development".
