Engraving Machine Cnc Router Kit 4x8 - China

CNC Engraving Machine CNC Router Kit 4x8

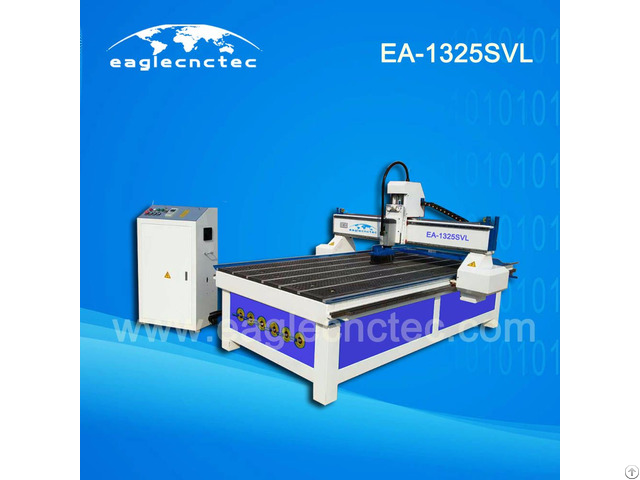

CNC Router Kit 4x8 Model.

EA-1325SVL is a basic machine with working size 1300mm by 2500mm; It is equipped with origin Italy HSD spindle which is the best quality spindle on the world for cnc router machine; another advantage of EA-1325SVL is it’s table, which is a perfect combination of T-slot and vacuum; this table design increase 30% possibility of clamping work piece by clamp compared with regular vacuum table design.

CNC router kit 4x8 can do the production jobs like: wood door, wall art dector panel, slatwall, euro-style furniture, sign cutting etc.

Application

Material good for cnc router 4x8 is solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Technical Parameter

XY Working Size | 4’x8’

Feeding Height | 200mm Machining Precision | 0.1mm / 100mm

Max.

Idle Running Speed | 35, 000/min

Max.

Routing Speed | 20, 000mm/min

Drive Motor | Big torque stepping

Spindle | Air cooling 3.0kw, origin HSD from Italy, variable speed 0-18, 000RPM

Controller | DSP A11 or NK105G2

Working Table | PVC vacuum with T-slot

Vacuum Pump | Water-ring, 5.5kw, 230CBM/h air flow XY Transmission | Helical rack and pinion

Z Transmission | Rolling balls crew

XYZ Linear | HIWIN rail, origin from Taiwan Working Power | AC380V/50-60Hz, 3 Phase 4 Wires

Max.

Power Consumption | 12KW

Net Weight | 1350KGS More choice on specification for you: Many items of cnc router kit 4x8 can be customized as per your request.

They contains spindle (air or water cooled, power, brand), driving motor (stepper or servo, brand, model), controller (Richauto DSP, NC studio, NK105 DSP), linear guideway (brand, size), inverter (brand, model), driver (brand, model).
