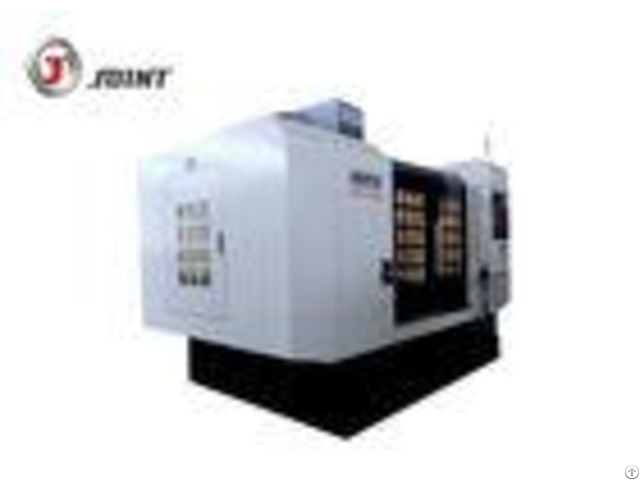

Fanuc System Vertical Cnc Machine 11kw Bt40 10000rpm Spindle Vmc1060l - China

Fanuc system Vertical CNC Machine 11kw BT40 10000rpm Spindle VMC1060L Product features: 1 - Machine frame with linear guides in an extra-wide configuration, rigid construction for efficient machining 2 - 24-station tool changer for quick and precise tool changes 4 - Enclosed work space ensures safe and contamination-free work 5 - Very accessible work table for easy setup of clamping tools and workpieces 6 - Powerful servo-drives ensure high feed dynamics 7 - Effective coolant system ensures optimum use of tools and excellent chip removal 8 - Multitude of options allow maximum customization to meet any requirements Product application: 1 - It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process.

2 - It is suitable for many varieties, medium and small batch production.

3 - It can finish the processing of complex, high precision parts.

4 - It can be matched the four rotary axis, in order to meet the requirements of special parts.

5 - Application industry: 3C products, automatic production line parts, electronics, machinery, car, plane, aerospace, shipbuilding and national defense etc.

Specification Of Vertical machine center VMC1060L - - - - Model | Unit | VMC-1060L | Travel | X axis | mm | 1000 | Y axis | mm | 600 | Z axis | mm | 600 | Distance between spindle and table | mm | 70-670 | Working table | Table size | mm | 1300*600 | Max.

Load of table | Kg | 800 | T slot | Pcsmm-mm | 5-18-100 | Positioning accuracy | X/Y/Z axis | mm | 0.008/0.008/0.008 | Repeated positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.007 | Spindle | Spindle rotation speed | Rpm | 8000 | Spindle taper | | BT40 | Diameter | mm | 150 | Rivet model | | BT40 45 | Rapid feed | X/Y/Z axis | m/min | 30/30/18 | Cutting feed | X/Y/Z axis | m/min | 10 | Tool magazine | Umbrella type | Size | Tools | 20 | Too changing time (T-T) | Sec | 6 | Max.

diameter/ length/weight of tool | mm | 100/200/8 | Max tool diameter (no tool adjacent) | mm | 180 | Arm type | Size | Tools | 24 | Tool changing time (T-T) | sec | 3.5s | Max.

diameter/ /length/weight of tool | mm | 80/200/8 | Max tool diameter (no tool adjacent) | mm | 150 | Total capacity of electric | KVA | 20 | Weight of machine | Kg | 7500 | Dimension | mm | 3300*2670*2950 | - - - - Standard Accessories: Fanuc/MitsubishiControlle r system Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit Working light Tool and tool box Optional accessories: Siemens controller or other controller system Spindle oil coolant Umbrella type tool magazine Arm type tool magazine Screw type auto conveyor Chain type tool magazine 4 Axis rotary table Ring spray spindle
