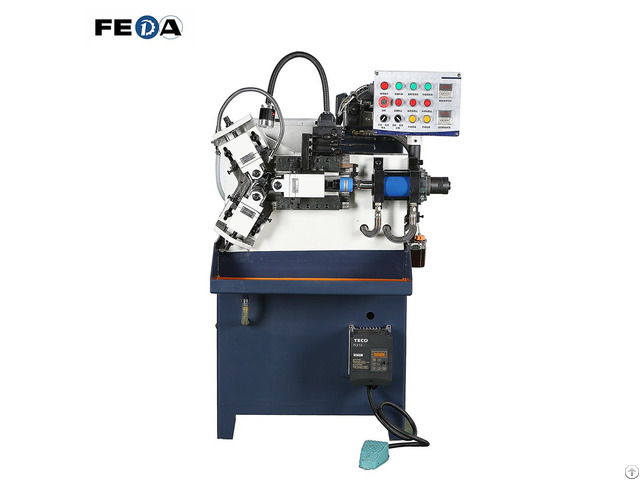

Fd-30a Three Axis Thread Rolling Machine High Precision - China
price: 7650.00 Dollar US$
1 - Three rollers to keep inside diameter same as that before rolling
2 - Usually used for making thread, knurling on pipe, tube parts
3 - High precision, stability and high durability
4 - Automatic feeding device(Vibration bowl) can be designed
5 - CE, ISO9001-2008
Specificatio n Working diameter 8-35mm Thread pitch 0.5-2.5mm Thread length In feed or Thru feed Spindle speed 350-600rpm (variable speed) Outside diameter of rolling die 78mm- 90mm Inside diameter of rolling die(keyway) 25.4mm&35mm Thickness of rolling die 40mm Center distance between die spindles 55-90mm Output(pcs/min) 5-30(pcs/min) Swiveling Angle(degree) ±3° Main power motor 2.2 KW Hydraulic motor 1.5 KW Max rolling pressure 6T Supply voltage 380V 3P 50Hz Weight(reference) 650KG Package Dimension(L*W*H) 1280*1100*1600 mm Dimension(L*W*H) 1180*1000*1500 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, ShengZhen , GuangDong , China
- Email:
- Website: https://www.szfeda.com/
Published date: March 26, 2025 - Modified date: March 26, 2025
- Business Description: We mainly produce thread rolling machine and dies for making external thread on bolts, thread rods, fasteners, etc.
