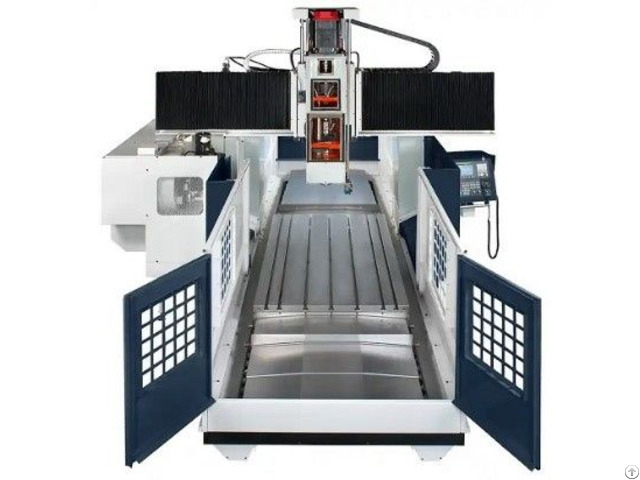

Fg Series Double Column Machining Center - Taiwan

Model: DBC 1500mm

To produce a high rigid machine tool, it needs to start from rigorous requirement of a small screw.

With over 30 years of design and manufacturing experience, Chi-Fa's FG series double column machining center has been developed and manufactured in-house throughout the entire machine.

Only with this way, we can fully understand how to optimize combination and running for the thousands of parts on a large machine tool, that also allow us to build the optimum machine structure.

Description:

As a trusted double column machining center taiwan, we specialize in designing and manufacturing high-precision solutions for various machining needs.

Our commitment to quality and innovation is reflected in every aspect of our machines, from the structural design to the materials used.

Z-axis is a box way design and sliding surfaces are precisely scraped to ensure the service life of the slide ways.

The box ways and the ram are one-piece fabricated to achieve no clearance between the slideways and the saddle.

This feature is normally requested by a high end machine.

Class C3 Ball Screws on Three Axes: Ball screws have been pre-tensioned to ensure machining accuracy under heavy loading condition for a long time.

Table, Spindle Head & Saddle: Manufactured from high quality Meehanite cast iron, they feature ultra high rigidity, excellent absorbing capacity and wear-resistance.

Base, Beam & Column: These structural parts are manufactured with multi-walls with internal rib, welded by high strength steel plates with tempered and stress-elieved.

With the meticulous design, various structural parts will provide the best possible vibration absorbing performance and rigidity.

Company Contact:

• Posted By: Chi Fa Machinery Manufacturer Co., Ltd.

• Phone: 886-4-25628747

• Address: No.44-8 Ming-Chaun Rd., Sheng-Kang District, , Taichung City, na , Taiwan

• Email:

• Website: https://www.twinhorn.com/

• Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

  From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

  Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

  Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.
