Flake Ice Machine 1 5t 24h - China
price: contact company for price
Flake Ice Machine 1.5T/24h, Flake Ice Machine 1.5T, 1.5T Flake Ice Machine Flake Ice Machine 1.5T
1.5T Flake Ice Machine Share:
Ice production 1.5 Ton Per Day
Fresh Water /Salt Water
Air Cooling/Water Cooling
Flake Ice Thickness: 1.5-2.2mm
Refrigerant: R22/R404A
With PLC Controller

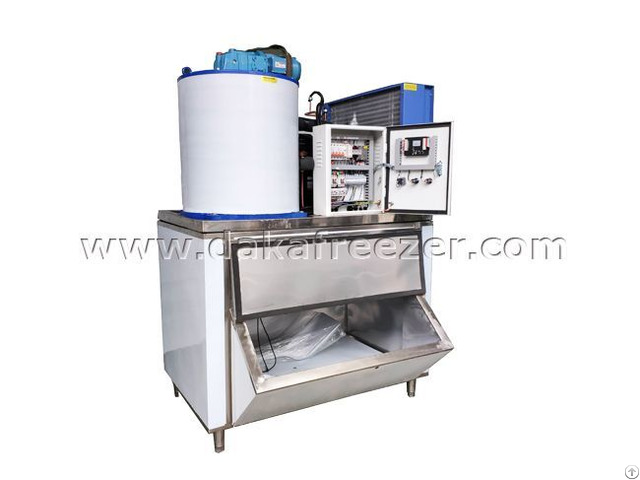

Flake Ice Machine 1.5T/24H
DAKA FREEZER commercial ice machines are widely used in supermarket chains, hotels, seafood markets, food processing and vegetable preservation, etc
Ice production from 300kg/d-2500kg/d, which can meet the commercial requirements.
DAKA FREEZER commercial ice machines are equipped with various brands of compressors such as the danfoss/Copeland scroll and the semi-closed piston.
The storage bin made of double-sided stainless steel.
Customers can choose integral type or separate type (unit + ice bin) according to the different application.
The flake ice machine can start and stop automatically to make the evaporator mechanical operation system and water suppling circulation system
coordingation matched and work safely and effictiently under the function of PLC programmable controller.
The whole ice making process is equipped with intelligent computer protection such as water shortage, ice full, high and low pressure alarm, phase sequence protection and overload protection etc.
When there is a failure, the PLC stops the unit automatically for protection and displays the status of the indicator light at the input point.
When the fault is restored, the PLC will start the unit automatically, realizing full automatic control.
Technical Parameters
Model DFI-1.5T
Capacity 1500kg/24h
Cooling capacity 9.8kw
Evaporating temp.
-20℃
Condensing temp.
40℃
Standard water temperature 20℃
Power install 6.82KW
Compressor 6.18KW
Condenser fan 0.45KW
Reduction gear 0.18KW
Water pump 0.09KW
Power supply 380V/50Hz/3P
Water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice temp.
-5℃
Water consumption 0.0625 M3/h
Water pipe 1/2’
Machine Net Weight 450Kg
Machine size 1320*900*900mm
Ice bin Dimension(mm) 1320*1180*1100mm
DAKA FREEZER commercial flake ice machine(ice production 0.3T/0.5T/1T/1.5/2T/2.5T/ 24H)
1 - Standard cooling method: Air cooling, if need water cooling, it can be customized according to customer requirements.
2 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.
3 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.
4 - The above parameters will be changed subject to the technical invotation without further notice.
Would you like some more information or to order your new machine….
Email Us or call 86-20-81778146
Company Contact:
- Phone: 020-81778146
- Address: Building K, South District, Wangzhitang Industrial Zone, Longxi Avenue, Liwan District, Guangzhou, Guangzhou , guangdong , China
- Email:
- Website: https://www.dakafreezer.com
Published date: March 22, 2019
- Business Description: Guangzhou DAKA Refrigeration Equipment Co., Ltd. is a professional refrigeration equipment manufacturers, DAKA FREEZER brand production of Contact Plate freezer, flake ice machine, tube ice machine, block ice machine, cube ice machine, heat pump dryer room and cold storage complete sets of equipment for global aquatic processing, meat processing, offshore fishing , poultry slaughtering, agricultural products processing, supermarkets, chemical dyes, mines, concrete buildings, artificial ski resorts and other industries to provide high-quality, environmentally friendly energy-saving products.
