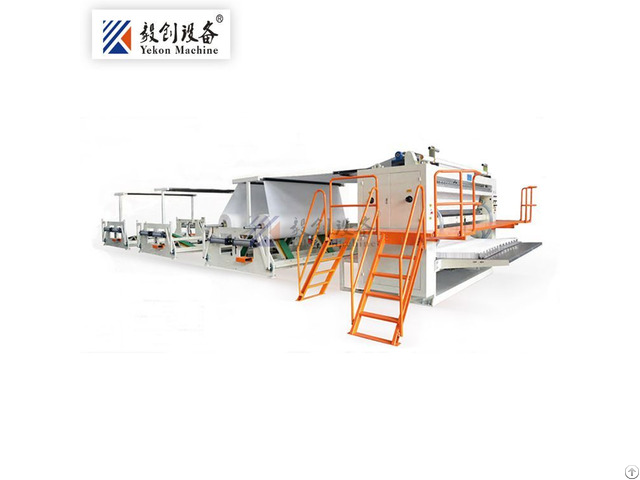

Ftm 190 14t Facial Tissue Folding Machine - China

FTM-190/14t Facial Tissue Folding Machine Folding Unit：

1 - Size of folding roller ：2900mm (width), material is 45# steel by coated Cr.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size：190±2mm X(150~200)

4 - Finished product folding size：95±2mm X(150~200)

5 - Folding type: V folding

6 - V Fold Tissue Paper Folding Machine Speed of folding: 500~1000sheet/min/line


7 - Folding roller is used double air valve structure, material is hard-wearing nylon.

8 - Transverse paper-cutting type: the roll of upper cutter is 45#steel, surface is coated by hard Cr.

upper blade is 1 integral high speed- steel fixed cutter front and back.

Material is SKD-II, hardness HRC 58~60;

Underside blade are 4 integral high-speed cross cutters, hardness HRC 60~62;

9 - Circular blade：3pcs blade on top, it is a form of cut off completely, has a offcuts collection box.

10 - Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60, coated hard Cr.

56edge embossing each front and back side.

Material is bearing steel.

11 - Main frame is panel structure, thickness is 60mm.

12 - Delivery platform add a overturn plate.

Embossing Unit：4 embossing rollers(steel by steel or steel by rubber )

Yekon Facial Tissue Folding Machine Unwind Unit：2sets

1 - Width of parent paper：2850mm

2 - Max diameter of parent paper：1500mm

3 - Core inside diameter：453mm

4 - 6 parent paper roll controlled with separate motor.

5 - Web tension controlled：electric control

6 - Parent roll axes regulation：electric control

Facial Tissue Paper Folding Machine Transmission：

1 - Transmission are all by gear and simultaneous belt.

2 - Folding roller, cutter roller etc the brand of bearings of main parts are “HAERBIN”, ”WAFANGDIAN”brand.




3 - Mounted bearing is “LK” brand.

hand towel tissue folding machine Control Unit：

1 - Adjusted speed by inverter.

PLC controlled and touch screen are SIEMENS brand.

2 - Counting system：electric eye induction, set up by touch screen, count by the left and right dislocation

unit or ink unit.

3 - Jogging button and emergency button installed on machine

4 - Electrical control

1) Disconnector protection switch electromagnetic contactor are Schneider brand.

2) Control buttons is used Schneider.

3) Relay is used Schneider.

4) Proximity switch is OMRON.

electric paper Folding Machine Vacuum control:

1 - 45KW TAIWAN roots vacuum pump 1set.

(2 noise silencer, SIMENS motor;1 set inverter 45KW)

Air-operated control:

1 - Air cylinder, air valve are famous brand of China.

2 - Air pressure：> 4kg/cm2 (provided by buyer)
