Galvanised Finish Automatic Storage And Retrieval System For Saving Space - China

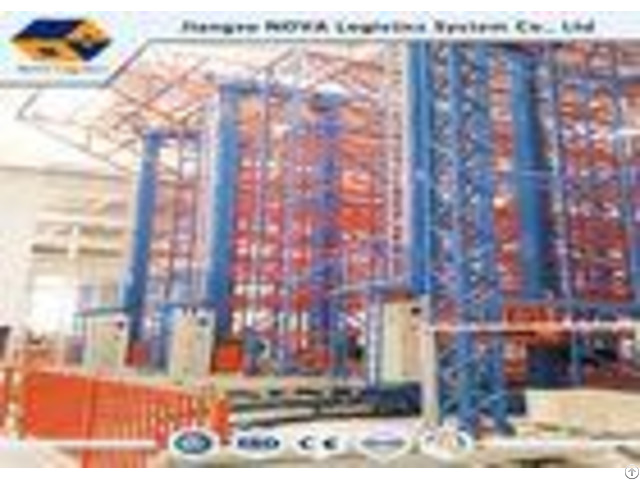

Automatic Storage and Retrieval System Automated ASRS system, heavy duty storage rack 1).

AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure.

2).

Steel panels and wooden panels are available for loading with good capacity.

Conveyors will do the loading and unloading job under the instruction from the central computer.

3).

AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

Advantage Using the warehouse space fully Saving space reducing the H.

R Removing mistake Improving working and management etc.

- - - - 1 - Raw Steel Code | Q235B | 2 - Loading Capacity | 1-24 tons | 3 - Racking Height | Up to 14, 000mm | 4 - Racking Depth | 700-1200mm | 5 - Beam Length | Up to 25000mm | 6 - Racking Finish | Powder Coated Finish or Galvanised Finish for Frames.

| 7 - Upright(Standard section size) | 80*60*1.8-2.0, 90*60*1.8-2.0, 90*67*1.8-2.0, 90*78*1.8-2.5, 120*85*2.0-3.0, 120*95*2.0-3.0mm | 8 - Box beam(Standard section size) | 80*50*1.5, 100*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0mm | 9 - Delivery time : | 7 -15days for 2*40' containers | 13 - Standard exporting package: | 1 - Packing in carton clips for beams; 2 - Packing in plastic films for uprights; 3 - packing in cartons for other accessories.

| - - - - If you are interested in our ASRS system, please offer following info for a clear quotation: 1 - the warehouse drawing(CAD drawing is better), Or you can tell me the quantity needed.

And include how many main shelf and slave shelf? 2 - the size of the rack(L*W*H) 3 - the loading capacity of each layer 4 - the layers of per rack If you don't have the drawing, we could provide you the CAD design for your warehouse to your requirements, thanks a lot.
