Gfjx 3a Z Automatic Aluminum Tube Filling Crimping Machine - China

Introduction

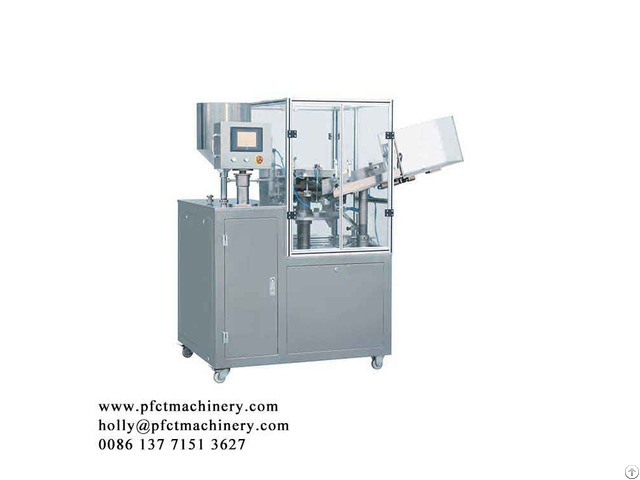

GFJX-3A-Z Auto aluminum tube filling sealing machine use intelligent PLC and touch screen control.

You can control the machine by the touch screen, such as motor running speed, filling speed, filling volume, etc., besides, all of the operation steps displayed in the screen.

You can adjust it easily and conveniently.

GFJX-3A-Z Auto aluminum tube filling sealing machine is mainly used for the quantity filling and folding of aluminum tubes.

It is widely used in pharmaceutical, cosmetic, food and chemical industries.

Such as ointment, adhesives, AB glue, Neoprene, epoxy glue, skin cream, hair cream, boots oil, toothpaste and else liquid, lotions and cream.

Working process: This machine has the function of tube storage and feeding besides filling, mark-checking, folding and printing.

The aluminum tubes feed and locked into the tube-holder automatically and exactly, it is photo-electricity controlled, no tube, no filling.

There are 16 pieces stations totally, run automatically.

After tube-mark checking, it begins to fill, four-folding, code printing and exist.

There is one calculator to record the production capacity per time, you can clear it to Zero for second production.

All of the actions are auto control, which improved the production capacity and saving labor cost.

Features: The filling speed and accuracy is convenient to adjust, good stability.

For different diameter tube, just change the tube-holder, easy and economical.

Technical parameters: Voltage: 3phase, 380V, 50hz (can be provided according to your volt.

) Filling speed: 20-50tubes/min (VFD control) Suitable diameter: Ф10-Ф35(mm) Tube holder: 12 pieces Power: 1.5kw Hopper size: 30 liters Filing volume: A：10-75ml B：20-150ml Filling accuracy: ±1% Weight: 350(Kg) Compressed air: pressure: 0.1-0.3Mpa, air consumption: 0.2M3/min Dimension: 1500×800×2000mm
