Heavy Duty Double Column Cnc Milling Machines Shipping Building 2500 1200 800mm - China

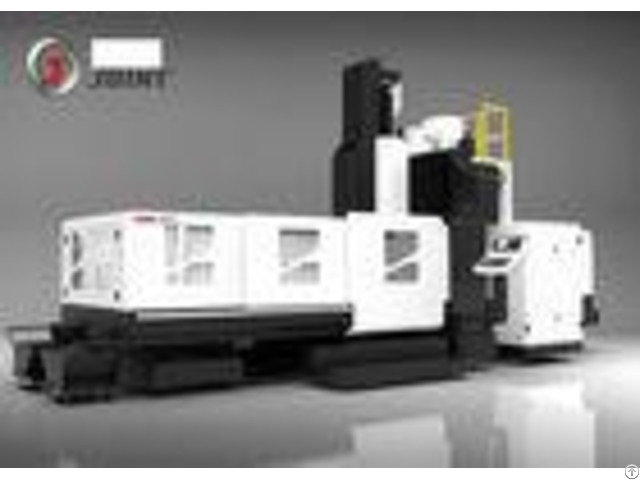

X Axis Travel 2500mm BT50 Spindle 8000rpm High Speed Double Column Machine Center For Making An Mould BTMC1225 Product Feature Gantry machine center applies fixed beam type double vertical shafts gantry framework structure with cross layout, stable and reliable machine tool.

Grantry machining center is mainly used in large size parts, sheet machining, disc piece, housing piece, mold ect.

With high accuracy, multi-process, complex shapes.

Within one-shot clamping, it can continuously complete milling, drilling, flaring, reaming, boring, tapping, 2D and 3D curve and bevel precision machining .

It fulfills programmed machining .

It shortens production cycle .

Therefore the users get good economical benefits.

Bed, worktable, vertical shaft, beam, axis ect apply high strength cast iron material.

Model is of resin sand technology .

Stress is removed by secondary time effect treatment .

Those large pieces adopt Pro/E and Ansys optimizecd design .

It enhances rigidity and stability of large pieces and overall machines.

It effectively restricts cutting force which leads to deformation and vibration of machine tool.

Wide range of application CNC gantry machining center is usually for making medium and large parts And it is widely used in shipping building industry, wind energy industry, aviation industry To make some parts like motors, blades beam, molds and gear box .

Specification of cnc Gantry type machine center - - - - Model | BTMC1225 | Table size | 900*2500mm | X aixs travel | 2500mm | Y axis travel | 1200mm | Z axis travel | 800mm | Gantry width | 1200mm | Distance between spindle and table | 120-920mm | Spindle rotation speed | 8000rpm BT40-10000/12000/15000Rpm optional) | Spindle taper | BT50 (BT40 Direct connection spindle ) | Spindle Motor | 15-18.5kw | Work table Tslot | 7-22*125 | X axis rapid feed | 18 | Y axis rapid feed | 18 | Z axis rapid feed | 18 | Cutting feed | 8 | Positioning accuracy | 0.01mm/mIN | Min.

set moving unit | 0.001mm | Net weight | 15000kgs | Max load of table | 3000kgs | Dimension | 7500*2800*3600mm | - - - - Standard Configuration 1 - FANUC System 2 - Heat exchaner in electric control cabinet 3 - Water tank cooling device 4 - Manual pulse generator 5 - Automatic lubrication device 6 - Workong lamp 7 - Outer protective cover 8 - Three-color warning lamp 9 - Spindle blowing device 10 - RS-232 standard output interface 11 - Handle air gun 12 - LCD 13 - Water gun 14 - Tool and tool box 15 - Electric control cabinet 16 - Operation manual 17 - Transformer Optional Configuration 1 - Mitsubishi system 2 - ATC (Manipulator) 3 - Spindle oil cooling device 4 - Water through spindle center device 5 - Disk type oil-water separator 6 - CNC rotation worktable (the 4th axis) 7 - Air conditioner in electric control cabinet 8 - fully-enclosed optical scale detecting system 9 - Automatic tool length measuting system 10 - Manual / Semi*autoatic right-angle head 12 - ZF gear box
