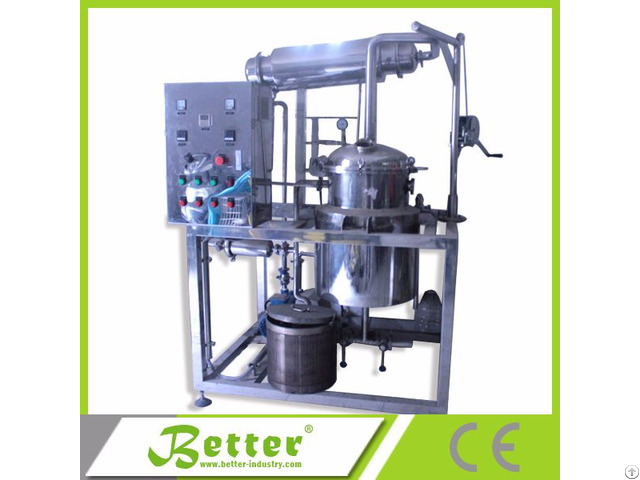

High Efficient Herbal Extraction Equipment - China
price: check with company for price
Introduction
As the base unit of the extractor field, it can be used for various fields of pharmaceutical, food, and chemical etc.
We can use different extraction process for herbs, flowers, seeds, fruits, leaves, bone etc.
Like water extraction, solvent extraction, thermal reflux ect.
This is the ideal equipment for colleges and universities, research institues, research and development departments and laboratories of enterprises and institutions to do research or batch production of pharmaceutical plant.
Technical Parameters
Small&medium size solvent extraction machine
No.
Model Capacity Power
(KW) Vacuum pump(kw) Agitator motor(w) Heating Area(m) Condensing Area() Material Vacuum degree
1 HST10 10L 11 0.55 90 0.21 0.55 SUS304 -0.05~-0.08Mpa
2 HST20 20L 13 0.55 200 0.28 0.8
3 HST30 30L 15 1.5 200 0.33 1.2
4 HST50 50L 21 2.25 200 0.5 1.83
5 HST100 100L 30 3 400 0.98 2.95
6 HST150 150L 35 3 400 1.45 3.2
7 HST200 200L 42 3.5 400 1.85 3.5
8 HST300 300L 45 3.5 400 2.85 4.3
Notes:
1 - For capacity above 300L, will be custom made with operation platform.
2 - Material contacting parts can be chosen to use SUS304 or SUS316.
3 - All types of machines can be chosen to use digital control or PLC control.
4 - The machine can be made into electricity heating or steam heating.
5 - Concentration parts can be custom made into film concentration or normal vacuum concentration.
6 - Filer can be chosen according to customers demand.
7 - Extraction and concentration temperature is adjustable.
Features
1 - Suitable for water extraction, alcohol extraction or other organic solvent extraction, can be performed at atmospheric pressure or negative pressure
2 - High efficiency of extraction and concentration, can realize the re-flux extraction process, reduce the extraction and concentration time, solvent saving.
3 - Vacuum comncentration can effectively reduce the loss of heat-sensitive active ingredients.
Application
Application Scope Type of Description
Pharmaceutical Analytical solution of antibiotic resin for desalination and concentration, vitamin concentration
Dye Desalination and concentration, instead of salting out, acid
Amino acid decolorization, impurity removal, concentration and desalination
food Oligosaccharides, starch, sugar, separation, purification, fruit juice concentrate, plant extract
Recovery of mother liquor MSG mother liquor purification, glucose crystallization solution impurity etc.
Water treatment Priting and gyeing waste-wter treatment, water resue, ultra pure water preparation
Acid, alkali recovery Pharmaceutical industry washing column acid, alkali waste liquid, chenical fiber industry waste acid, alkali
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1 - What does BETTER need from me to quote a price?
a).
Raw material
b).
Production capacity per batch, we supply 0.5L~200L machine for you, big capacity of machine can be customized according to your request for your request.
2 - What is your machine' material?
Stainless steel.
It can be customized according to your request.
3 - What is suitable material for your machine?
Our machine is quite suitable for herbs, plants extracting and concentrating.
4 - Can I do extraction test of my raw material?
Yes, of course, and we will send you videos and test report for your reference.
5 - Can you provide us equipment if we do not know the process flow?
We have R&D department, we can do research according to your request.
6 - What you can I get through your machine?
You can get concentrate liquid, cream and powder.
7 - What solvent does your machine can use?
Water and Organic solvents.
It depends on your raw material and request.
8 - Can I use the machine to extract several kinds of raw materials?
Yes, of course.
9How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
10 - How will my order be packed, can you provide the installation service?
Packed in plywood case, we will assemble and test the machine before packing.
We will send English manual.
If customer need, we will send one engineer for assemblingand training for workers.
USD100 per person per day, food, accommodation and air-ticket will be on clients.
