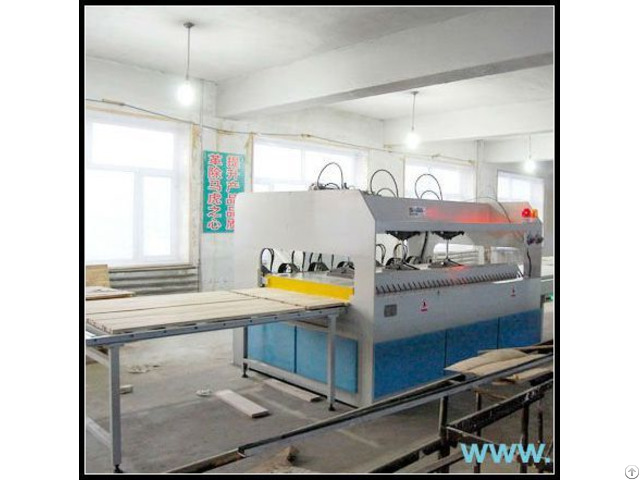

High Frequency Finger Board Edge Gluer 1220 2440mm - China

price: 10000.00 Dollar US$

High frequency edge gluer is also called radio frequency edge gluer, It combines the high frequency heating with 2 direction pressing press, suitable for finger joint or edge glued board jointing or gluing the rim of solid wood door or other wooden block gluing.

1 - Introduction of Use:

Place the glued wood slats into the feeding table, starts HF edge gluer, feeding cart will push the slats to the curing table, PLC gives signal to the hydraulic, top press plate presses down to make the wood slat flat and uniform, then back pusher pushes in to make the wood slats well glued, high frequency power starts automatically to heat the glue according to set time, after heating finish, pressure keep and HF stop, system starts the program of cooling, after cooling, back pusher move back, top plate raise, one cycle finish.

When the second feeding starts, the finish panel or board is pushed out of curing table and fall to outlet table, then the second gluing cycle starts.

2 - Character of Saga's High Frequency Edge Gluer:

a) PLC automatic control, auto feeding

b) Electro components mostly use European brand like Schneider, Siemens, Omron to enable stable working

c) Strict quality control and regulation on mechanical spare like hydraulic, other spare parts all use international standard


Company Contact:


  • Phone: 0086-15176843360

  • Address: Ganjiang Road of Economic Technology Development Zone, Shijiazhuang , Hebei , China

  • Email: Email


Published date: May 25, 2016

  • Business Description: Our production cover with high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency precise frame assembly machine and high frequency generator.
