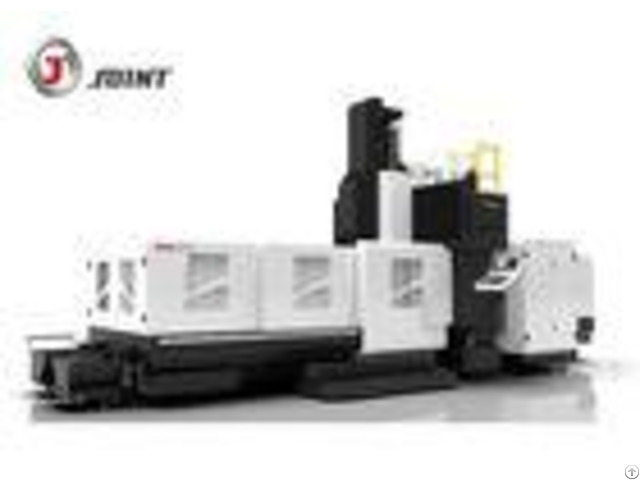

High Precision Double Column Machining Center 2000kgs Gantry Type Milling Machine - China
price: check with company for price
High speed high speed double column machine center for making an mould BTMC1016 Specification of cnc Gantry type machine center - - - - Model | BTMC1016 | Table size | 900*1800mm | X aixs travel | 1600mm | Y axis travel | 1100mm | Z axis travel | 800mm | Gantry width | 1100mm | Distance between spindle and table | 150-950mm | Spindle rotation speed | 8000rpm BT40-10000/12000/15000Rpm optional) | Spindle taper | BT50 (BT40 Direct connection spindle ) | Spindle Motor | 15-18.5kw | Work table Tslot | 7-22*125 | X axis rapid feed | 18 | Y axis rapid feed | 18 | Z axis rapid feed | 18 | Cutting feed | 8 | Positioning accuracy | 0.01mm/mIN | Min.
set moving unit | 0.001mm | Net weight | 13000kgs | Max load of table | 2000kgs | Dimension | 5200*2600*3400mm | - - - - Product Feature BTMC10 Series is upgrade the product of big size VMC machine (VMC1270/1370/1580/1690/1 890) Advantage Improve mahcine proccessing precision, spindle centerline and Z axis guide-way is basic coincidence, without deformation problem of spindle box caused by 780-950mm gap distance of VMC machine Eliminate the precision differnces by casued worktable of impending at both ends Good accuracy stable, solve the worktable long-term bearing load, cause the deformation Loading weight of worktable is increasing by 50% than loadied weight of VMC Machine table Heavy cutting of machine's vibration is reduced, it is more suitable heavy cutting for the structure design of spindle centerline and Z axis guide-way basic coincidence Z axis adapt Nitrogen balance, improved reatction speed, run more smoothly than VMC Machine with heavy hammer
Company Contact:
- Posted By: SHENZHEN JOINT TECHNOLOGY CO.,LTD
- Phone: 86-755-15218746521
- Address: BLOCK 64 FUMIN INDUSTRY ,PINGHU TOWN,LONGGANG DISTRIC ,SHENZHEN CITY, Shenzhen , Guangdong , China
- Email:
- Website: https://www.verticalcnc-machine.com
Published date: May 28, 2018
- Business Description: Shenzhen Joint Technology CO., LTD., was established in 1995 - Our headquarter is located in PingHu town, Shenzhen, China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality
