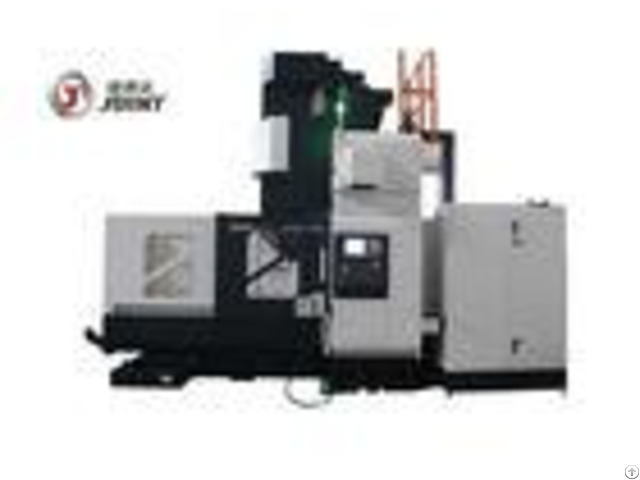

High Precision Double Column Machining Center 900 1400mm Table Gantry Cnc Mill - China

X Axis Travel 1400mm High Speed High Precision Double Column Machine Center For Making An Mould BTMC1014 Product Feature 1 - BTMC10 Series can instead of big size VMC Machine Model( VMC1270 1370 1580 1690 1890 ) 2 - Increasing mahcine proccessing precision, spindle centerline and Z axis guide-way is basic coincidence, avoid machinedeformation problem of spindle box caused by 780-950mm gap distance of big size VMC machine 4 - Good accuracy stable, long service life, Y axis donot bear work piece weight, worktable runningis more than base of table, solve the worktable long-term bearing load, cause the deformation 5 - Table Loading weightis increasing by 50% than VMC Machine load weight 6 - Z axis adapt Nitrogen balance, improved reatction speed, run more smoothly than VMC Machine with heavy hammer Industry Focus Gantry CNC machine center is widely used in aviation, auto, precision molding industrie 1 - Car front bar mold 2 - Household appliances mold 3 - Car interior mold Specification of cnc Gantry type machine center - - - - Model | BTMC1012 | Table size | 900*1400mm | X aixs travel | 1200mm | Y axis travel | 1100mm | Z axis travel | 800mm | Gantry width | 1100mm | Distance between spindle and table | 150-950mm | Spindle rotation speed | 8000rpm BT40-10000/12000/15000Rpm optional) | Spindle taper | BT50 (BT40 Direct connection spindle ) | Spindle Motor | 15-18.5kw | Work table Tslot | 7-22*125 | X axis rapid feed | 18 | Y axis rapid feed | 18 | Z axis rapid feed | 18 | Cutting feed | 8 | Positioning accuracy | 0.01mm/mIN | Min.

set moving unit | 0.001mm | Net weight | 12000kgs | Max load of table | 1600kgs | Dimension | 4200*2600*3400mm | - - - - Standard Configuration 1 - FANUC System 2 - Heat exchaner in electric control cabinet 3 - Water tank cooling device 4 - Manual pulse generator 5 - Automatic lubrication device 6 - Workong lamp 7 - Outer protective cover 8 - Three-color warning lamp 9 - Spindle blowing device 10 - RS-232 standard output interface 11 - Handle air gun 12 - LCD 13 - Water gun 14 - Tool and tool box 15 - Electric control cabinet 16 - Operation manual 17 - Transformer Optional Configuration 1 - Mitsubishi system 2 - ATC (Manipulator) 3 - Spindle oil cooling device 4 - Water through spindle center device 5 - Disk type oil-water separator 6 - CNC rotation worktable (the 4th axis) 7 - Air conditioner in electric control cabinet 8 - fully-enclosed optical scale detecting system 9 - Automatic tool length measuting system 10 - Manual / Semi*autoatic right-angle head 12 - ZF gear box
