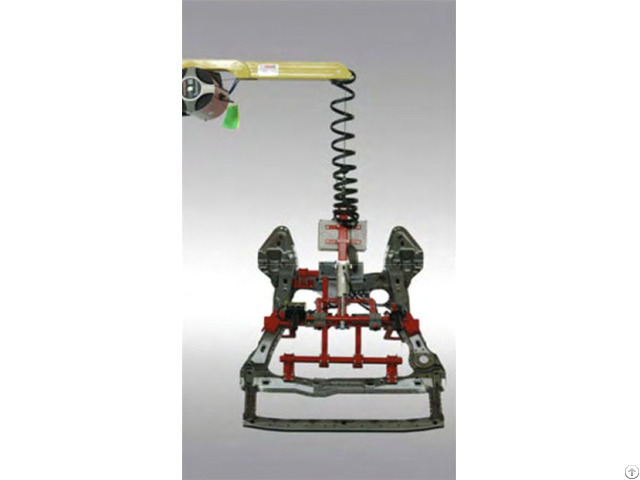

High Quality Efficiency Industrial Pneumatic Cable Rope Manipulator - China
price: 1.00 Dollar US$
Column Mounted Manipulator
Anchor systems:
* Fixed base-plate
* Portable base-plate for forklift truck transfer
* Portable base-plate for pallet truck transfer
* Portable base-plate for manual transport
* Trolley mounted base-plate for floor tracks.
* Floor built-in track.
Fixed Overhead Manipulator
Anchor flange
The pneumatic manipulator overhead version allows the elimination of any floor obstructions.
The flange of the Manipulator is supplied with holes for the anchoring with screws to a strong plate to the ceiling or to a shelf.
All movements are free and are obtained with minimum effort by the direct action of the operator on the gripping tooling or on the load.
Overhead Running Manipulator
Anchor
The Manipulator is supplied with an overhead trolley to run in a tracking system.
Tracking system
The tracking system is composed of two opposite aluminium U sections with connecting and stiffening ribs, complete with attachment points for an overhead suspension and end buffers.
The junction between the various parts is done with screws.
Attachment
The attachment of the tracking system to the supporting structure is carried out by means of rods and suspension brackets Max weight capacity: 500 Kg
Max working radius: 3000 mm
Max vertical lifting speed: 0, 5 meters/second
Vertical lift: 1800 mm
Control system: solely pneumatic
Supply: filtrated compressed-air (40 µm), not lubricated
Working pressure: 0.7 ÷ 0.8 Mpa
Working temperature: from +0° to +45° C
Noise level: <70 dB
Consumption: from 20 Nl ÷ 100 Nl per working cycle Rotations:
– constant 360° on the column and tooling axis
– 315° on the intermediate axis
