High Rigidity Enclosed Cover Auto Tapping Machine 10 Kva Total Electric Capacity - China
price: check with company for price

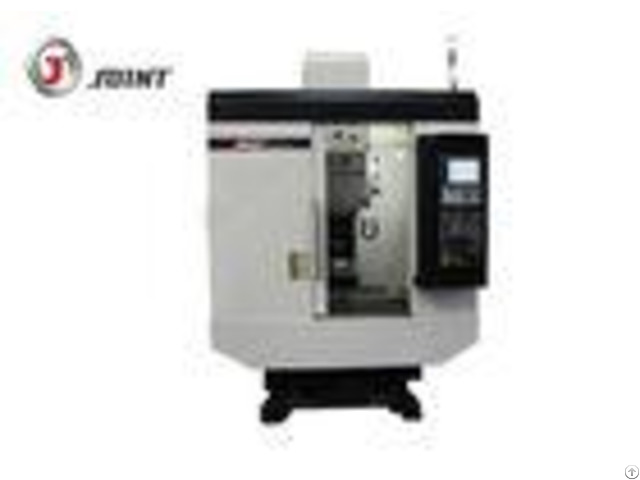

High speed high efficiency cnc drilling and taping machine center VTC500 Product features: 1 - The main parts of the fuselage are cast with high quality cast iron.
2 - the internal muscles and bones are strengthened, all of them are treated by tempering.
3 - and the finite element analysis is carried out by special design software.
4 - It has the characteristics of high strength, good stability, and not easy to deform 5 - Ensure the rigidity of the whole machine and the accuracy stability of long-term use.
Spindle Feature: 1 - The spindle head structure, internal strengthening, p4 super precision bevel ball bearing.
2 - long span support design can make the spindle bear strong radial and axial thrust and eliminate the vibration caused by heavy load cutting.
3 - Configuration of Taiwan Ruiying spindle, the highest speed of up to 20000 revolutions.
4 - a gap-free precision coupling transmission, high transmission accuracy.
5 - The low inertial spindle is sensitive to the bt30 spindle during high speed tooth tapping, 6 - and the main shaft motor adopts the power supply to pick up, and the speed of the main shaft motor response is fast.
7 - The design of the main shaft nose with the main shaft air curtain can prevent the entry of debris and ensure the spindle precision and life.
Standard Accessories: 1 - Fanuc 0i-MF(5) control system withmotor 2 - Coolant system 3 - Pneumatic system 4 - Auto Lubrication system 5 - BT30/3.7KW/12000RMP Spindle 6 - Enclosed cover Specification - - - - Model | Unit | VTC500 | Working table | Table size | mm | 620*420 | Max.
Loaded of table | kg | 200 | T slot(quantity-size-gap) | pcsmm-mm | 3-18-125 | Distance between spindle and table | mm | 210-510 | 3 axis travel | X axis | mm | 500 | Y axis | mm | 400 | Z axis | mm | 300 | Positioning accuracy | X axis | mm | 0.006 | Y axis | mm | 0.006 | Z axis | mm | 0.006 | Repeated positioning accuracy | X axis | mm | 0.005 | Y axis | mm | 0.005 | Z axis | mm | 0.005 | Spindle | Spindle rotation speed | rpm | 10000/12000/15000 | Spindle taper | | BT30 | Tool | Tool handle model | | BT30 | Blind rivet model | | BT30 45 | Rapid feed | X axis | mm/min | 48000 | Y axis | mm/min | 48000 | Z axis | mm/min | 48000 | Cutting feed | X, Y, Z axis | mm/min | 8000 | Tool magazine | ATC | Size | tools | 16T | Too changing time (T-T) | sec | 2.5 | Max.
Size of tool | Near/Interval mm | 80/150 | Max.
weight of tool | Kg | 3 | Motor | Max.
Spindle motor | Motor Kw | 3.7-5.5 | X, Y, Z axis | Power Kw/Rated torque Nm | 1.5/42 | Total capacity of electric | KVA | 10 | Weight of machine | Kg | 3000 | Dimension | mm | 1600*2000*2350 | - - - - Optional accessories: 1 - Oil water seperator 2 - Spindle oil coolant 3 - rotary table 4 - air gun
Company Contact:
- Posted By: SHENZHEN JOINT TECHNOLOGY CO.,LTD
- Phone: 86-755-15218746521
- Address: BLOCK 64 FUMIN INDUSTRY ,PINGHU TOWN,LONGGANG DISTRIC ,SHENZHEN CITY, Shenzhen , Guangdong , China
- Email:
- Website: https://www.verticalcnc-machine.com
Published date: May 28, 2018
- Business Description: Shenzhen Joint Technology CO., LTD., was established in 1995 - Our headquarter is located in PingHu town, Shenzhen, China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality
