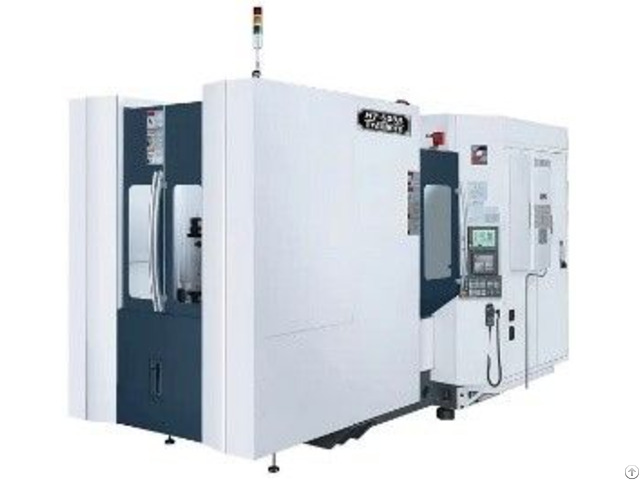

Horizontal Machining Center With 2apc - Taiwan

price: contact company for price

Model: HT-500A-500B

SPECIAL DIFFERENTIAL-SLIDE BASE DESIGN

Special High-Low level X axis guide way design with 580 mm wide span providing best stability and resistance of column motion during high

speed machining.

SUPERIOR HIGH SPEED AXIAL FEEDRATE

045 mm P20 coolant through ballscrew design on all 3 axes provides highest rapid feedrate 60 m/min with minimum heat deformation during high speed

operation.

LARGE SPAN DESIGN

720 mm extra wide span between Z axis slides provides most stable movement and heavy machining operation support.

Description

As a leading horizontal machining center factory, we specialize in designing and manufacturing high-precision solutions for various machining needs.

Our commitment to quality is evident in every aspect of our machines, from the materials used to the advanced technology incorporated.

High-tensile Meehanite cast iron on all major pars, with 3 layers T shape box type one piece base design provides best rigidity and superior accuracy stability.

Multi-layers and enforce-rib design on base unit structure prevent any deformation and greatly reduce machining vibration during high speed operation.

All three axes equipped with C3 degree 45mm extra wide high accuracy linear guide way and high precision hollow coolant through ballscrew to ensure machining situation under very stable status.

Main structure design adopts FEM technology to create a superior rigid and accuracy during high speed operation.


Company Contact:


  • Phone: 886-4-25628747

  • Address: No.44-8 Ming-Chaun Rd., Sheng-Kang District, , Taichung City, na , Taiwan

  • Email: Email


Published date: October 25, 2024

  • Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

    From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

    Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

    Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.
