Htm 3z 2l Multifold Hand Towel Tissue Folding Machine - China

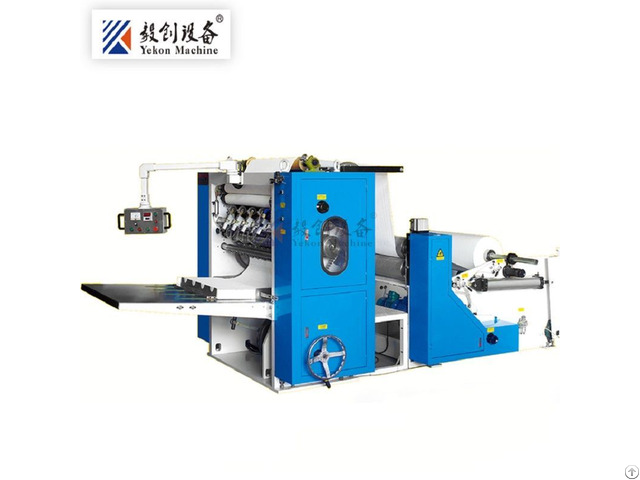

HTM-3Z-2L Multifold hand towel tissue folding machine

Folding Unit：

1 - Size of folding roller ：550mm (width)

2 - Applicable roll quantity: 35~45 GSM(1ply)or 16~25GSM(2ply) towel

3 - Finished product open size：210±2mm x(150~250)

4 - Sheet Folded size：70±2mm x(150~250)

5 - Folding type：N fold

6 - Speed of folding：500~700sheet/mi n/line

7 - Cross cut: 1 sheet high speed steel top blade, 3 sheets high speed steel underside blade

8 - Circular blade：2 blade.

underside cylinder is bearing steel

Yekon N fold Hand Towel Folding Machine Embossing Unit

1 - Two chromium plated steel roller, air pressure.

2 - With curve roller.

Unwind stand Unit:

1 - MaxWidth of paper: 500mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - Unwind reelstand for one reel.

5 - Web tension controlled：manually

6 - Parent roll axes regulation：manually

auto Facial Tissue Single Packing machine Transmission：

1 - By gear and simultaneous belt

Control Unit：

1 - Speed adjusted： is by inverter, main motor 5.5kw

2 - Counting system：counter adjusted

3 - Jogging button and emergency button installed on machine

auto Hand Towel folding machine China Vacuum System：

1 - 1set LONGTECH roots vacuum pump of 15KW (Taiwan)

Compressed Air：

1．Air pressure：> 4kg/cm2 (provided by buyer)
