Industrial Water Chiller Supplier - China

PRODUCT NAME:

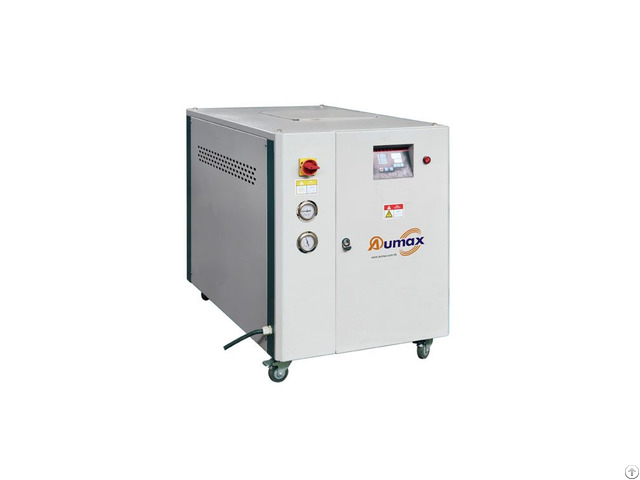

Water-cooled Industrial Water Chiller

MODEL NO:

AMC-3W AMC-5W AMC-8W AMC-10W AMC-12W AMC-15W AMC-20W AMC-25W AMC-30W

Water-cooled Water Chiller Specification:

Name Water Cooled Water Chilling Machine

Model AMC-3W AMC-5W AMC-8W AMC-10W AMC-12W AMC-15W AMC-20W AMC-25W AMC-30W

Chilling Capacity kw 7.5 13.5 20 25.5 31.5 38.5 50 62.5 77.5 Kcal/h 6500 11600 17200 22000 27100 33200 43200 53800 66600

Compressor HP 3 5 8 10 12.5 15 20 25 30

Refrigerant R22 / R407C

Evaporator Tube-in Shell / Stainless Steel Plate Type Heat Exchanger

Condenser Tube-in Shell / Stainless Steel Plate Type Heat Exchanger

Water Tank L 60 60 95 95 150 150 180 200 280

Pump Power KW 0.75 1.5 2.2

Max.

Flow L/min 100 200 230 600

Max.

Pressure Kg/cm² 3.2 3 2.4 2.6

Chilling Water Pipe Dia.

1” 1.5” 2.5”

Chilled Water Pipe Dia.

1” 1.5” 2.5”

Drainage Port 1/2”

Overflow Port 1/2”

Weight kg 120 220 250 300 330 360 450 560 600

Dimensions:

L mm 1163 1250 1350 1350 1700 1700 1900 2150 2150

W mm 760 760 860 960 1200 1200 1200 1480 1480

H mm 1250 1320 1560 1620 1750 1750 1750 1800 1800

Please excuse for not note if some specifications of products are changed!

Aumax® is a famous supplier of Water Cooling Tower, Air-cooled Water Chiller, Water-cooled Water Chiller, Industrial Water Chiller, Mold Temperature Controller, Screw-compressor Water Chiller etc.

Welcome to contact us to know more.

Note：

1)The cooling capacity is measured when the outgoing water temperature is 12°C and ambient temperature is 30°C.

2) The standard power supply is 3Ø, 380V, 50HZ.

Other power supply is available.

Application:

AMC-W Series Water-cooled Industrial Chillers are used to supply low temperature water to cool plastic mold and speed up molding process and shorten cycle time.

The water chillers also can improve the product quality.

The water type chillers should be cooperated with cooling tower for the heat removing of condenser.

The water chilling machine can also be used to cool the hydraulic oil of injection molding machine.

AMC-W Series water chillers not only can be used in plastic molding industry, they are also applied to electroplating, electronic, textile, machine tools, etc.

Our Drying & Dehumidifying series including Hopper Dryer, Honeycomb Dehumidifier, Cabinet Dryer, Dehumidifying Dryer, Dehumidifying Drying Loader Unit.

Best quality and competitive price.

Welcome.

Features:

Machine can supply chilled water with temperature between 5~35℃.

Global top brand compressor, water pump, fans and electric parts, high performance and low power consumption.

Optimized heater exchanger provide high cooling efficient.

Stainless steel water tank and pipe keeps water in good quality.

High precise PLC and temperature controller control temperature deviation less than ±1℃.

Overload protector to protect water pump, compressor and air fans.

Fixed with wheels, easy to move.
