Lead Edge Feeding Flexo Printer Slotter Die Cutter With Stacker - China

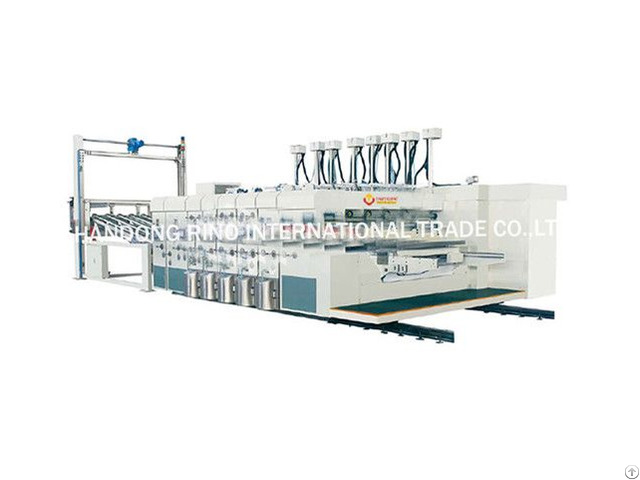

Lead edge feeding flexo printer slotter die cutter with stacker

Printing Machine

Lead edge feeder Printing Machine

Model UP1-140-900 UP1-140-1200 UP1-140-1400

Color Group Everything can be equipped according to user’s needs.

Printing Paper A, B, C, A/B, B/C, A/B/C.

Production Speed 180pcs/min 160pcs/min 140pcs/min

Max.

Paper Sizes 900*1800/2000/2200/2400/2 600mm 1200*1800/2000/2200/2400/ 2600mm 1400*1800/2000/2200/2400/ 2600mm

Min.

Paper Sizes Positiveknife 300*640mm 350*720mm 400*720mm Negative knife 300*720mm 350*740mm 400*740mm

Max.

Printing Sizes 900*1600/1800/2000/2200/2 400mm 1200*1600/1800/2000/2200/ 2400mm 1400*1600/1800/2000/2200/ 2400mm

Max.

Die-cutting Sizes 900*1700/1900/2100/2300/2 500mm 1200*1700/1900/2100/2300/ 2500mm 1400*1700/1900/2100/2300/ 2500mm

Standard PrintingPlate Thickness 7.2mm

Slot Width*Max.

depth 7*220mm 7*300mm 7*350mm (Number of blade and slot depth may be added)

Min.

SlotSpace Positiveknife 150*150*150*150mm 170*170*170*170mm 170*170*170*170mm Negativeknife 250*90*250*90mm 260*90*260*90mm 60*90*250*90mm

Printing Roller Dia.

300mm 408mm 480mm

Performance of the main mechanisms:

1 - Designed according to the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with an exact data.

2 - Main motor frequency convert to control.

3 - All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish.

4 - Driving gear : Material is 20 CrMoTi alloy steel teeth, carburizing treatment, fine grinding.

5 - The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing precision.

6 - The machine adopt PLC control, with automatic zero return and memories function.

7 - Use sun feeder for feed the cardboard.

8 - Option: rotary die-cutter, rotary slotter.

Hot sale various high quality Carton Cardboard Machine, Folder Gluer Machine, Lead Edge Feeder Printing Machine, Automatic Die-cutting Machine, Manual Die-cutting Machine, Gift Box from China leading manufacturer.

Our Carton Cardboard Machine are high quality, cost effective and deliver more benefits.

Welcome to choose us!More information please view here.

Paper feeding unit

1 - Adopt servo motor driver multi-axis no pressure feeding system, no mechanical transmission error.

2 - Without full extension type paper glue of shaft transmission, implementation is true in the sense of zero damage, can prevent the deformation of cardboard an guarantee the accuracy of the paper.

3 - Vacuum Suction lead edge feed and adjust the paper size as per pressure of wind.

4 - Installing suck removing dust machine to eliminate the odd on the printing plate and improve the printing quality.

5 - Non side breakage technology to decrease transmission difference to min degree.

6 - Without equipping oil recycling and lubrication structure, and it is friendly to environment .

Printing unit

1 - Both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated.

2 - Dynamic and static balance correction ensure to run stability.

3 - Adopt hanging structure, convenience and fast to set up.

4 - Installing and uninstalling printing plate with pedal switch.

5 - Working with feeding unit and automatic developer system ( during the feeding unit runs, the anvil roller goes down to contact with printing plate, while, on contract, leave printing plate.

)

6 - Printing phrase adjustment adopt touch-screen, which is finished by servo driven program automatically.

7 - Printing roller keep the function of zero return and can reset in dynamic and static condition.

8 - Cermiacal anvil roller work with close scrapping ink structure .

80-150printing line is available.

9 - Pneumatic diaphragm pump control pump to supply and exclude ink, convenience to wash.

10 - Duralumin arch shape scrapping ink container make anti-curved ability increase by 30% and save 20% for ink reversion.

11 - Coating with friendly environment material for easy clean.

12 - Vacuum suction roller work with impression roller to ensure the registration precision at ±0.35mm.

13 - Motorized digit display adjustment axial position of impression Cylinder within the range of 20mm.
