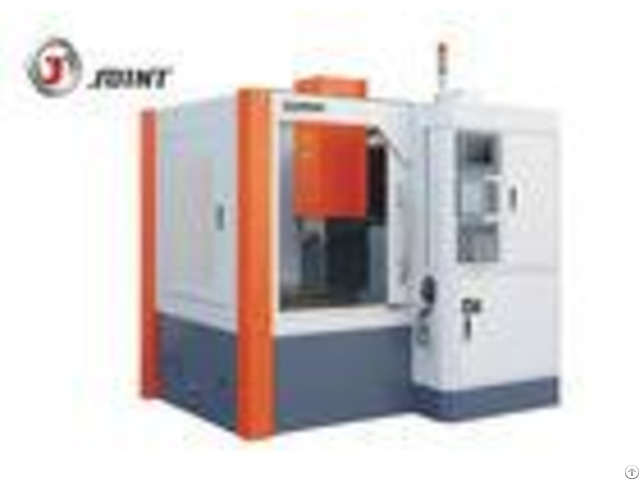

Metal Cutting Cnc Engraving Milling Machine With Enclosed Cover Y Axis Screw - China

price: check with company for price

Metal Cutting Cnc Engraving Milling Machine With Enclosed Cover Y Axis Screw

Products Photos Catalog Metal Cutting Cnc Photos Catalog

China High speed metal cnc engraving and milling machine for mold making Product Feature 1 - X/Y/Z axis are linear guide way, 3 axis standard rapid feed 10m/min 2 - High precision, high rigidity machine body maintains the processing stability during high rotation speed 3 - Special reinforced spindle case design for CM650B, The cutting strength increased much in comparison with similar models 4 - Coupling, spindle bearing are imported from germany Japan and taiwan top brands to ensure high quality and stability 5 - CM650B: 5.5KW, ER25, 24000Rpm standard spindle motor, 6 - 5KW, ER25, 18000Rpm or 5.5kw, BT30, 18000 and 24000RPM is optional Graphite machining center 1 - Could be equipped with drencher curtain and filtration system .

2 - or fully sealed protective dusting system 3 - Equipped with enclosed cover for Y axis screw 4 - Taiwan dust-proof sliding block Standard accessories: 1 - Japan Yasakawa three-axis servo motor 2 - Taiwan PMI C3 grade precise ball screw 3 - Japan three-axis NSK P4 bearing 4 - Taiwan HIWIN Liner way 5 - German Coupling 6 - Whole shield Specification of cnc engrave machine for metal - - - - Model | CM600 | Table size | 600*500mm | X axis travel | 600mm | Y axis travel | 500mm | Z axis travel | 220mm | Width of gantry | 650mm | Spindle taper | ER25 | Spindle Rotation speed | 500-24000/18000rpm | Spindle motor | 4.5kw | X/Y/Z axis servo motor | 0.85kw | Distance between tool head and table | 50-300mm | X/YZ axis feed speed | 8m/min | X/Y/Z axis rapid speed | 10m/min | Dimension | 1930*1450*2132mm | Net weight | 2500kgs | Max load of table | 200kgs | - - - - Optional Accessories Tool setting gauge Syntec 11MA/21MA Controller Graphite machine


Company Contact:


  • Phone: 86-755-15218746521

  • Address: BLOCK 64 FUMIN INDUSTRY ,PINGHU TOWN,LONGGANG DISTRIC ,SHENZHEN CITY, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 28, 2018

  • Business Description: Shenzhen Joint Technology CO., LTD., was established in 1995 - Our headquarter is located in PingHu town, Shenzhen, China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality
