Pipe Conveying System For Cutting And Beveling Machine - China

Performance features

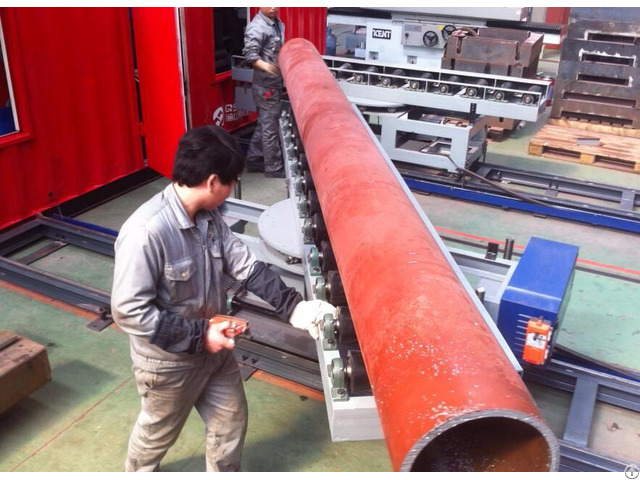

Conveying the pipe automatically or manually when the pipe cutting and beveling machine works the pipe can be removed from the machine with a turnover mechanism if necessary.

It increases the automatization level in the pipe fabrication plant and decreases the hazards during hoisting.

Technical parameters

Pipe diameter applicable: DN50～600(φ60～610)

Conveying length: 1, 000Mm at feed in end and 500mm at feed out end (or depend on customers’ requirements).

Line length: 7.5M at feed in end; 7.5M at feed out end

Line height: 800MM

 Material of the roller bench: carbon steel with blue treated surface (coated with rubber if necessary)

Conveying speed: 2～20M/Min

Speed-regulation Mode: manual/VF stepless speed adjustment

Control system: Manual/PLC control, shared with the pipe cutting length measuring system (or depend on the situation).

Turnover mechanism: Nil (or depends on the situation)

Lifting system: a lifting system could be equipped if required so as to adjust the center elevation of pipes automatically and to bevel the pipes of the different diameter.
